Who can help me? (about Zsphere)

system · May 17, 2005, 7:31am

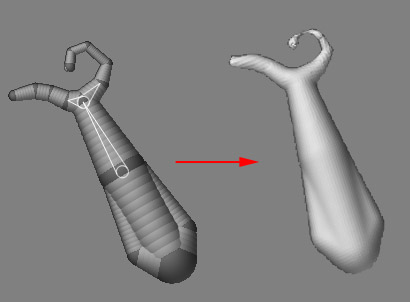

I am a beginner about ZBrush,I got a picture about creat a hand by zsphere,the hand is so natural and beautiful.but I have created a ugly hand.I am very sad!The quertion is show on the picture,who can help me?

sirquadalot · May 17, 2005, 8:10am

It looks like your using the adaptive skinning routine. You need to use the unified skinning mode. It is located under the “tool” pallet just above adaptive.

system · May 18, 2005, 6:53am

I have got it! Thank you very much!!!
Are you a expert of zbrush?

sirquadalot · May 19, 2005, 5:20am

Some times.

system · May 19, 2005, 11:43pm

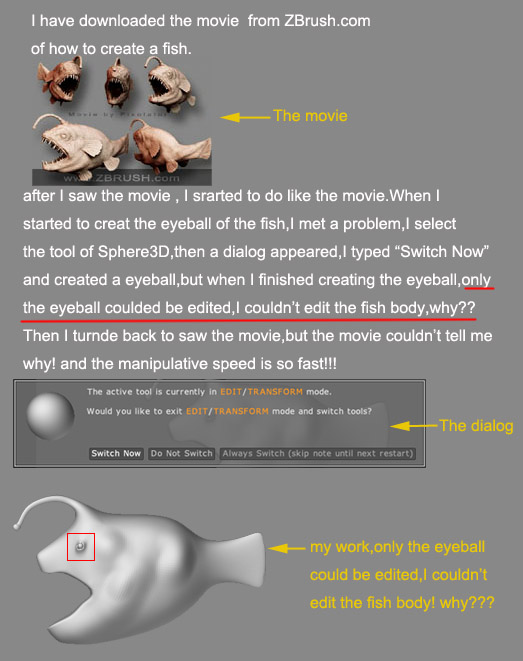

Now I met another question about ZBrush,It confuse me!
could you tell me why?

Frenchy_Pilou · May 20, 2005, 12:21am

I believe that in this movie the eye is add with Projection Master
For that the 2 objects must be transforme before in “Polymesh”
(or “unified Skin” for the primitive Sphere 3D = the eye)
I suppose there is a tut inside the prog about Projection Master
Hope that help you :rolleyes:
Pilou

system · May 20, 2005, 6:53pm

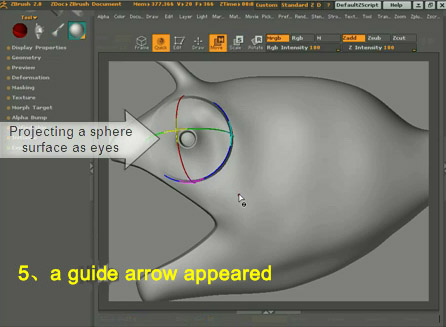

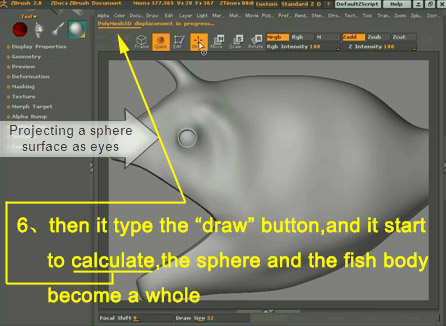

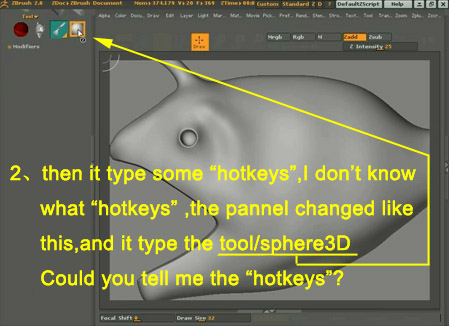

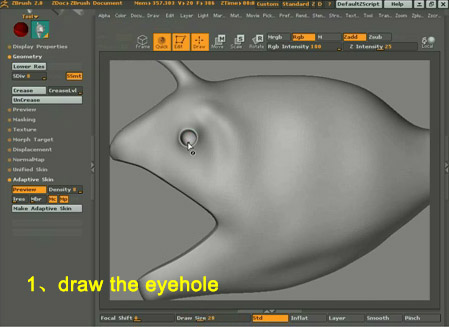

Here are some pictures in the movie.

The step 2,step 6 and step 7 confuse me very much,could you tell me how to
realize them?and could you show me some guided pictures?

Attachments

Frenchy_Pilou · May 21, 2005, 5:50am

…win a maximum of time on seeing the tut inside Projection Master Chapter 5
It’s about projection some volumes on a blade sword!
I believe that all your ask questions will be answered in this tut :rolleyes:
Pilou

sirquadalot · May 21, 2005, 6:37am

Although he does not show the steps, Pixolator is using projection master.

With the fish in edit mode, press the “g” key…up pops PM. Turn everything off except for Double sided, and deformation. Then create your sphere, and when it’s in position just press G again and “pick up now” You can use any tool…even zspheres to displace in PM.
