Transpose master annoying error

ZBrush Usage Questions
#1

Ok, i dont know if anyone else is suffering this annoying error, i made a serch and culdnt find any post related to it.

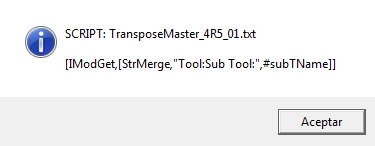

My problem is very time i hit the TPOSE MESH button, when zbrush starts going subtool by sub tool it suddenly stops and this error message appears:

After that nothing happens and the tpose mesh is never created, then i cant use transpose master again, unless i restart zbrush and the error keeps hapening every time i use it, some times it works, and ive not find a reason of why it works with some tools and not with others. please help, this is extremely annoying :confused:

This error happened too in version 4 r4.

Attachments

tpose error.jpg

#2

I’m having the exact same issue, but on a mac.

Screen Shot 2013-01-28 at 10.18.17 PM.jpg

But my transposer master has completely stopped working.

#3

Can you both check two things for the models you are using with Transpose Master:

  1. That there are no duplicate SubTool names.
  2. That the names have no characters other than alphanumeric (A-Z, 0-9) and hyphens (-). Especially check that there are no slashes (/ or ).

Let me know if that solves it. If after checking/correcting these you still find the error occurring can you share the model with me? This error is proving difficult to pin down.

Thanks,

#4

I checked all of my names. 2 subtools had the same name, ie. “subtool_2” and “subtool_2_2”. I went through all the subtools and renamed them differently. My transpose master is now working. If it gives me an error again I’ll update you. Thanks Marcus!

#5

Thanks LjSketch,

I’m glad it’s working for you now, though I’m not convinced the names you changed were actually causing the problem…

#6

I’m not so certain either. I can send you the .ztl that produced the issue if you like?

#7

That would be useful, thanks. I’ll PM you my address.
