Retopology Issue

ZBrush Usage Questions
#1

Hello,

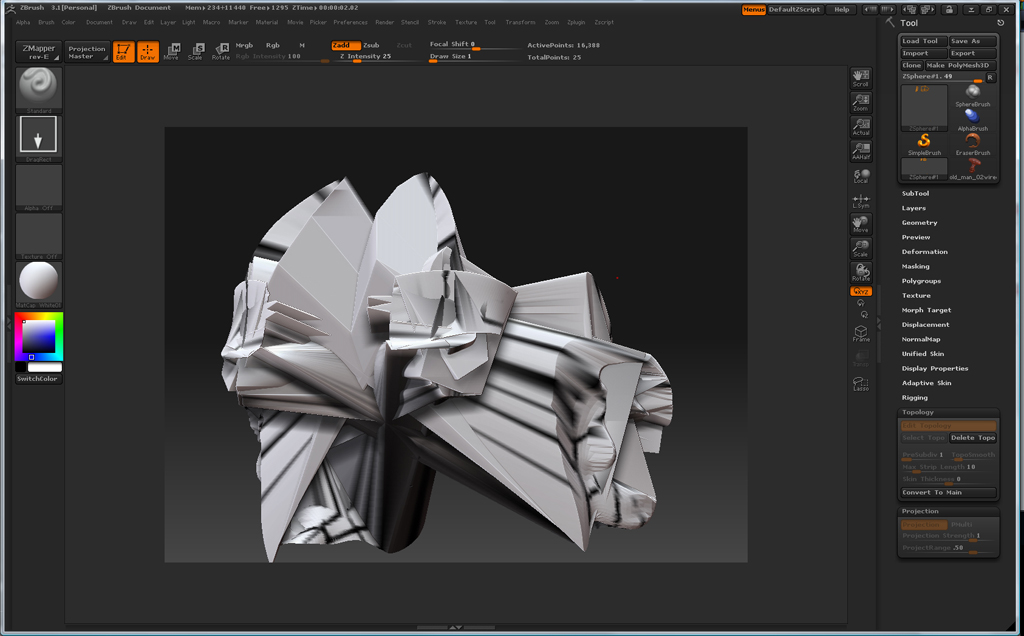

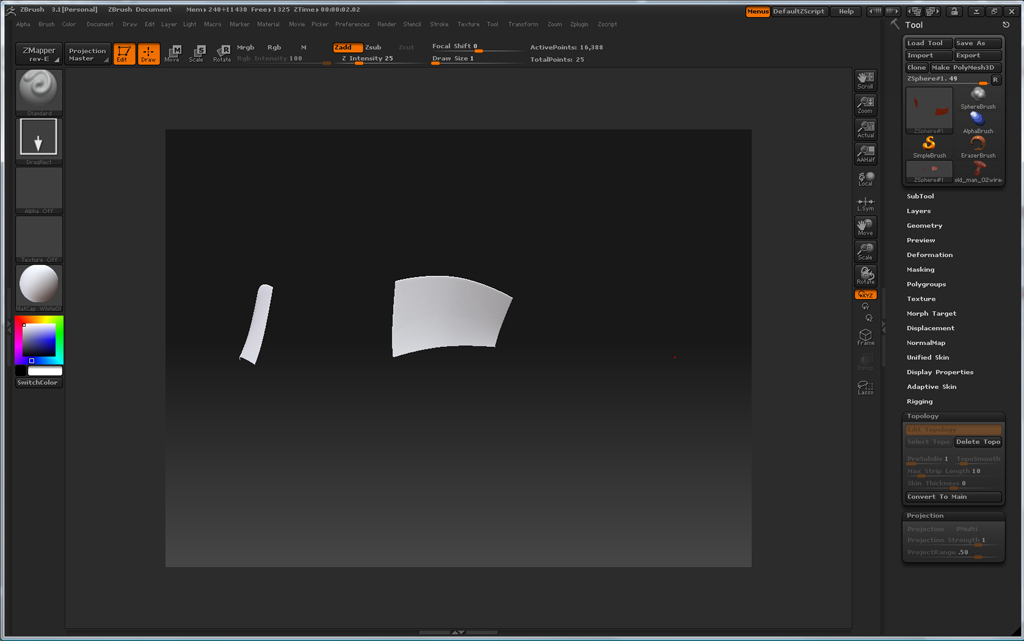

I am running into an issue attempting to retopologize my model here. After poly painting my mesh, I began normally and started creating the Zshpere network. After a few polygons were created I hit the projection button and previewed the mesh. As you can see it freaked out. I took off projection and the preview looks the way you would expect. I'm at a bit of a loss. Anyone know whats going on?

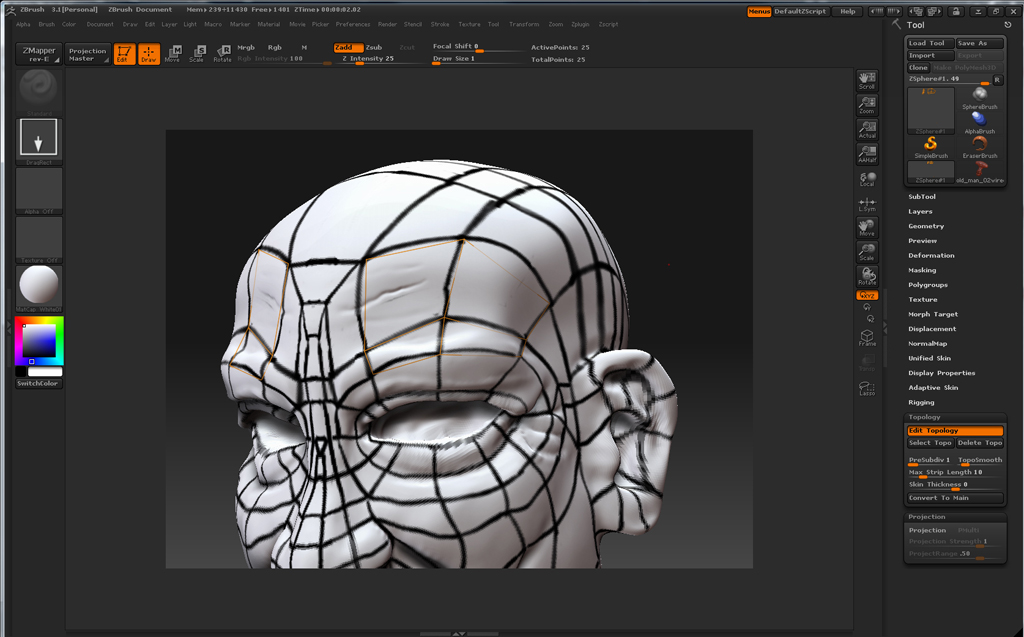

Original head


Tim

Attachments


#2

could be your normals, try a negative value for the projection.

If it still doesn’t work, just retypo without projection then append the new mesh to the old and use project all.

note: its good habbit to store a morph target and add a new sculpting layer when using project all

tip: you can control the project all projection strength with the layer int.

#3

Turned out you apparently need to have UVs before you start the retopology process. Morph thank for getting me thinking around the right area. It wasn’t a negative projection it was actually having UVs.

Thanks,

Tim
