Questions & Troubleshooting for ZBrush 4R6 - read first post for P2 Patch instruction

[aurick]

Have you uninstalled 4R4 or 4R3 since installing 4R6? Uninstalling either of those will remove the C:/Users/public/Pixologic/ folder (or on Mac, the \Users\Shared\Pixologic folder). In that case it will need to be replaced.

In that case, see here: http://www.zbrushcentral.com/showthread.php?125810-GoZ-Update-1-with-Photoshop-Support&p=1030108&viewfull=1#post1030108

If you haven’t uninstalled an earlier version and the Pixologic folder is there then something got messed up in your permissions for the Pixologic folder and/or its contents. In that case you won’t need to copy the Pixologic folder over to replace it but you will need to adjust the permissions as mentioned in that post.

[system]

GOZ won’t work on either 4.r5 or 4r6.

FILE WRITE ERROR
Sorry, the disk space is full.

I have plenty of space, i have full read/writer permissions.
thanks,
david

[Toddd]

Thanks Aurick, this fixed my issues. Initially I had tried the stand alone installer, when it didnt work I did uninstall some of my older ZB installs.

[aurick]

GOZ won’t work on either 4.r5 or 4r6.

FILE WRITE ERROR
Sorry, the disk space is full.

I have plenty of space, i have full read/writer permissions.
thanks,
david

That message under those conditions means that you don’t have full read/write permission somewhere. It could be that the permission is Read & Write for the Pixologic folder but not the subfolders. (I’m talking about the public/shared Pixologic folder, by the way. Not the one in your Program Files/Applications directory that contains ZBrush itself.)

Please see my post above concerning GoZ.

[chrono1081]

GOZ won’t work on either 4.r5 or 4r6.

FILE WRITE ERROR
Sorry, the disk space is full.

I have plenty of space, i have full read/writer permissions.
thanks,
david

Take a look at post #47 for the file path you need to check. Make sure to do the part with the cog wheel where you apply to all subfolders.

For some reason sometimes the permissions on the root folder don’t propagate to the subfolders.

[marcus_civis]

Hi, i’m trying the multimap exporter plugin to bake a 32bit displacement, and i did some tests with UV and there’s something strange going on.
Some parts looks like there a ‘pin’ in the corners, others are being smooth and the rest behave as expected (with frozen edges)

jclepev,

All the displacement maps should show the same UV smoothing. It would be useful to have the model to test, if that is possible. I will PM you.

Thanks,

[system]

That message under those conditions means that you don’t have full read/write permission somewhere. It could be that the permission is Read & Write for the Pixologic folder but not the subfolders. (I’m talking about the public/shared Pixologic folder, by the way. Not the one in your Program Files/Applications directory that contains ZBrush itself.)

Please see my post above concerning GoZ.

thanks! That was the problem, i needed to set the read write permissions for the zbrush floders down the file hiearchy in the shared folders. thanks again, I was in panic mode!
David

[system]

Take a look at post #47 for the file path you need to check. Make sure to do the part with the cog wheel where you apply to all subfolders.

For some reason sometimes the permissions on the root folder don’t propagate to the subfolders.

Thanks, it was lack of propagation!

[system]

Thanks for the great update!

I’m on a Mac.
Slice Curve brush - I was not getting that crazy mesh the others were getting but I guess it’s a similar problem.

ISSUE: Slicing a Dynamesh with group turned on, and re-dynamesh use to give you two solid mesh. Now it doesn’t
Here’s the step by step i did.

Dynamesh a sphere, with group function turned on and slice curve selected.
Slice the sphere will create 2 polygroups automatically.
Hiding one of the polygroup to show that it is doesn’t appear to be a solid piece of geo/mesh.

I even tried the hidden functions, the ones that pops up while holding down the Shift, Ctrl and spacebar. The Polygroup and BRadius. I know it’s not part of the procedure to begin with but I thought I try it out.

WORK AROUND:
It used to be done automatically, but the work around is to hide part of the mesh then split hidden and the dynamesh each mesh to make it a solid mesh.

VIDEO:
Here’s a youtube vid of what I did and maybe more clear for everyone.
http://youtu.be/YrmTS8efHHs

No biggie, just wanted to put it out there if there’s anyone else trying to do the same.

Loving the Dynamic Solo by the way.

Thanks.

This was my issue as well. I spent all morning banging my head against the keyboard trying all different combinations of hiding/splitting/dynameshing until I ran across your post and video. It works great except for the merging of tools now. Hopefully a patch is in the works.

Thanks again.

[Mr.Mars]

Hey, guys.

Got mine up and running fine on a Mac.
And it’s awesome.
Projection Master never worked for me in R5, but does in this one.

Except… The Double Sided feature in it.
Only sculpts on one side no matter what.

Anybody else got this?

Also, I was unaware of the Unified skin (resolution) change.
Going through Legrain’s tutorial there seems to be certain changes.
(Lowest resolution now being 16 instead of 8, and 32 the lowest in order to generate the mesh he uses for it.)

[zber2]

Hey, guys.

Projection Master never worked for me in R5, but does in this one.

Except… The Double Sided feature in it.
Only sculpts on one side no matter what.

Anybody else got this?

Turn on ‘Double’ in ‘Tool > Display Properties’ before you go into Projection Master.

[Mr.Mars]

Turn on ‘Double’ in ‘Tool > Display Properties’ before you go into Projection Master.

Great! Thank you.

[aurick]

For users who accidentally uninstalled GoZ by removing an earlier version of ZBrush, we have created new installers that will restore it without the need to fully reinstall ZBrush 4R6. You can download them here.

[LjSketch]

Hi guys,

I think I have the GoZ issue figured out. I was having trouble GoZing because I got the file write error others were experiencing and I think I found the issue:

First, go here (this is on Mountain Lion, I’m not sure if Lion or Snow Leopard are different): Users->Shared->Pixologic.

Second, right click the folder and click “Get Info”.

Third, go to the lower right corner and click the lock icon, enter your password and unlock it. (It may not be locked).

Fourth, click on the “Everyone” and make sure “Read and Write” is selected and then click the little cog on the bottom and click “Apply to enclosed items”.

You “may” need to reinstall GoZ for your selected applications, I’m not sure thought because I tried that first.

Worked like a charm! Thanks for figuring this out.

[system]

P2 Patch was found today.
What are the details of updating?

[yvan_c]

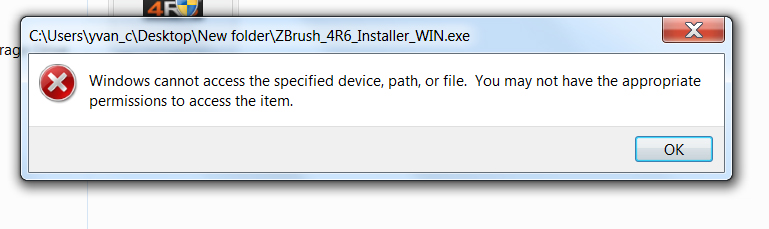

I downloaded the full installer (twice) and tried to install. I disabled my antivirus software, deactivated and uninstalled ZB4R5. I deleted all previous ZB folders. I also tried to run the *exe as administrator, but I keep getting the same error message in Win 7 Pro. Any ideas?

Thanks.

[aurick]

I downloaded the full installer (twice) and tried to install. I disabled my antivirus software, deactivated and uninstalled ZB4R5. I deleted all previous ZB folders. I also tried to run the *exe as administrator, but I keep getting the same error message in Win 7 Pro. Any ideas?

Thanks.

Please submit a Support ticket for that. Be sure to include your system info, including which version of Windows you’re running. Also, does your computer have a C drive?

[aurick]

P2 Patch was found today.
What are the details of updating?

I was just getting ready to announce release of the patch.

This patch fixes things that were found in GoZ, ZRemesher, Decimation Master and UV Master. I believe that there are a few other minor items here and there as well. I’m afraid I don’t have a complete change log that I can provide.

This patch is recommended for both Windows and Mac.

It can be installed by launching ZBrush and going to Zplugin >> Auto Update >> Check new updates. Alternatively, browse to your ZBrush 4R6 folder and run the ZUpgrader application.

You do not have to have 4R6 P1 to be able to install the P2 patch. The P2 patch also includes the changes that were in the P1 patch.

For anyone who might not have upgraded to 4R6 yet, the upgrade will now automatically deliver the version with the P2 patch already applied.

[chrono1081]

Worked like a charm! Thanks for figuring this out.

Glad it worked!

Modo actually figured it out I went to try and GoZ from Modo and it said that it couldn’t write to the file path. I went to the path it specified and noticed the items weren’t set to read/write.

[Berenart]

Hello all,

I’m running into a problem in transpose master when I tpose->SubT it switches to the default star and says there is a mismatch.

Also, I noticed that when I hit the “TPoseMesh” button for my model, it cycles through all the subtools and for some reason it switches the model to a star then to the regular combined subtools.

Is anyone else getting this?
