Max Zbrush UV issue

ZBrush Usage Questions
#1

Yeye so here we go again - couldnt find any specific in the search results. :+1: sorry…

I have a head with completed polypaint texture.

I want to export the polypaint texture on the head onto a large texturemap from zbrush and apply it into the head in 3dsMax.

I export my head lvl1 into 3dsmax - convert it to editable poly - apply unwrap modifier - load the UVtemplate i’ve saved from earlier - it loads fine.

Then I collapse the stack - convert to editable mesh - then to editable poly again.

Then I export the head as obj - turning off any unecessary features like “optimize” - only maintaing the texturemap.

In zbrush I import the new mesh into subD vl1 - then try and subdivide and all is good. The head now has the new UVmap and subdivides fine - no vertex mesh feckup…

SO - now I select a white 4096x4096 texturemap and apply to the head - I go to Texture and select Color to Texture

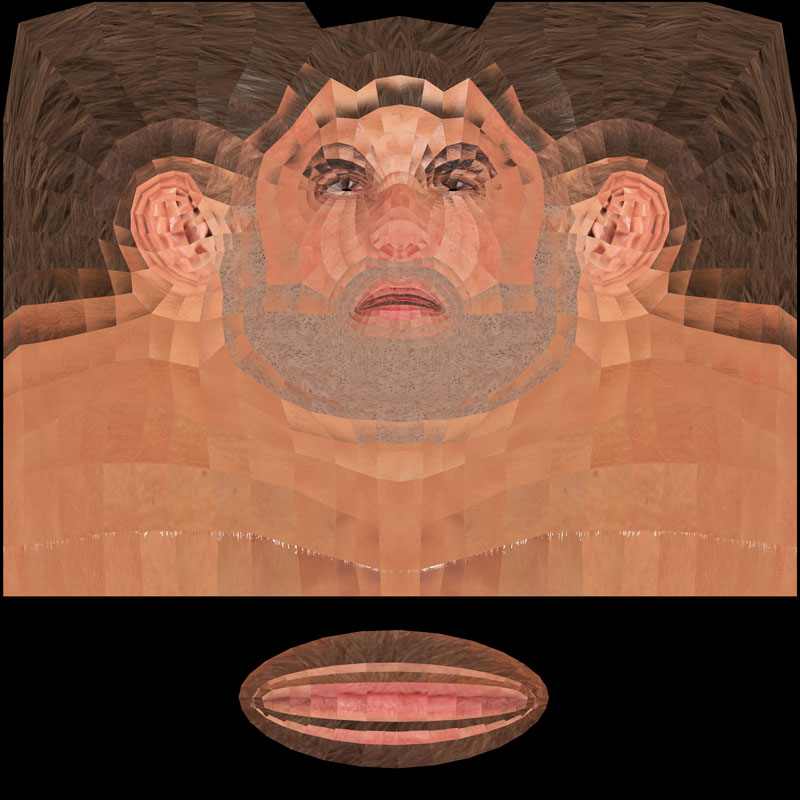

The texturemap is now onto the head - however something in the UVs has fecked it up - and it now looks like this:

Any know what the h… is going on in Max or Zbrush?


#2

The template you are loading is messed up. If you render the UVtemp you’ll see that all of your UV’s are either broken or flipped, or both. Most likely…

#3

Yeah probably - wel used to work fine between Maya and Zbrush - Max creates weird issues sometimes…o wel…

Thx for reply :+1:

#4

Okay - problem solved.

There was nothing wrong with the UVWtemplate I imported onto the lvl 1 mesh in 3dsmax.

BUT - when I imported the subd lvl 1 mesh (it comes in as Editable Mesh) I converted it to editable poly - applied Unwrap Modifier - loaded the UVWtemplate file - collapsed the stack - converted to editable mesh and back to editable poly (to fix vertex bug) - and then exported back into Zbrush.

This worked fine regarding the vertex issue - but not the UVW issue.

SO - the solution: import subd lvl1 into max (comes in as editable mesh) - convert it to editable poly - convert it to editable mesh - convert it to editable poly - now add the unwrap modifier and load the UVWtemplate - my mistake was simply adding it to early in the process - even though the vertex came out right it didnt fix the UVWs…

So to make a looooong story short: add the unwrap modifier last…

Sorry for the “novel” - just felt like it :slight_smile:
