Making a Ribbon / Scroll using the Deco Brush - Quick Tutorial

A page from Boozy’s Notebook.

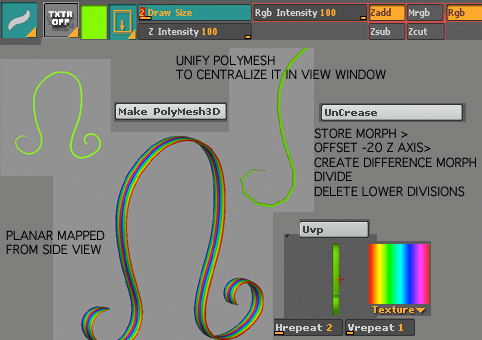

Here’s a quick walkthrough of the method:


choose deco brush
remove default texture applied
turn zadd on to 100% and draw size down to about 2
draw shape on canvas > make polymesh
unify this newly created polymesh so it is central in the Tool view window.(Tool>Deformation)
remove creases from the polymesh (Tool>Geometry)
now store a morph target ( Tool>Morph Target)
offset -20 in z direction (Tool>Deformation)
now create a morph difference mesh ( Tool>Morph Target)
now divide the mesh a few time so it is smooth ( Tool>Geometry) - (because the creases have been removed the edges of the ribbon are softer than they would have been had creases been kept)

Clear lower resolution divides before proceeding to texture ( Tool>Geometry)
now rotate the morph difference mesh in the tool view so it is side on and apply planar mapping

choose a texture - or do whatever you like :smiley:

Hope some find this useful.

I have good luck! I was answering your last comments and you were putting this superb tutorial!!!

Thanks friend
Andreseloy

Very useful tip!
Thanks Bozzie
Andreseloy

Thanks Bozzie 5.jpg

Great method! Thanks for the tutorial! :slight_smile:

[attach=12834]sheila4.jpg[/attach]
Pilou
Ps A very famous french singer :wink:

Attachments


Frenchy - who’s the gal with the backcomb?

not Edith Piaf
not Vanessa Paradis
not Bridgitte
not Sylvie Vartan (ooh la la, bing bang bong )

I’m putting my Euros on Annie Chancel -aka Sheila?

Well???

p.s Good luck in your own personal bid to oust Paris by hosting the Olympics in your own back garden .

OUHAHA YEah Pilou!!! Lets make Sheila’s clones!!!
Retro style rocks:+1: :+1: :+1:

Take look here :wink:
Here Diffrerent looks :wink:

Pilou

That’s a great technique, thanks for the how-to. How about a ‘Weekly Boozy Tutorial’ !!! :smiley: 50.

Thanks for the tips!!
