Keyboard Map

[system]

Is there a graphic anywhere that shows the default hotkeys for ZBrush? I want to program some, but I don’t want to overwrite the defaults (at first, anyways.)

Thanks.

[aurick]

http://www.pixologic.com/docs/index.php/ZBrush_Shortcuts

[system]

Thanks… I’ve seen that, but I’m pretty visual, I was hoping there was a graphic version of that with the keys all charted out or somesuch.

I’m trying to program my Wacom tablet, I was hoping to assign some hotkeys that I can use with the little buttons on the side. I’ve managed to get most of 'em, but I wanted to assign some brushes to the rest, though that’s also proving to be a fiendishly difficult task. I can assign hotkeys to the brushes within the “brushes” popup, but not to just select the brush, if that makes any sense.

[marcus_civis]

There’s no visual representation of the keyboard shortcuts.

To assign a hotkey to a brush:

1. Put the Brush palette in the right or left tray so that it remains open.
2. Select the brush that you want to assign a hotkey to. It will become the current brush.
3. Ctrl+Alt click the small thumbnail that will now be in the brush palette and assign the hotkey. (Don’t click on the large ‘Current Brush’ thumbnail as this will change to a masking brush when Ctrl+Alt clicking it.)

[system]

Thank you, putting the palette in the tray and picking from there did the trick!

I was trying to do it from the pop up window and that didn’t work.

[Enlargedhousecats]

I was curious what all the default hotkeys for zbrush were as well and also wanted to view them in the form of a keyboard map so I could see what changes I make to the defaults when I plan my custom hotkeys. I put some time into making a quick and(Very) dirty keyboard layout in http://www.keyboard-layout-editor.com/

be warned however, this doesn’t take into account that zbrush has a number of context sensitive shortcuts that aren’t represented well with this layout and there are some click commands that Involve modifier combinations that I have omitted because they were starting to add too much complexity.

Zbrush Ctrl+Alt Hotkeys

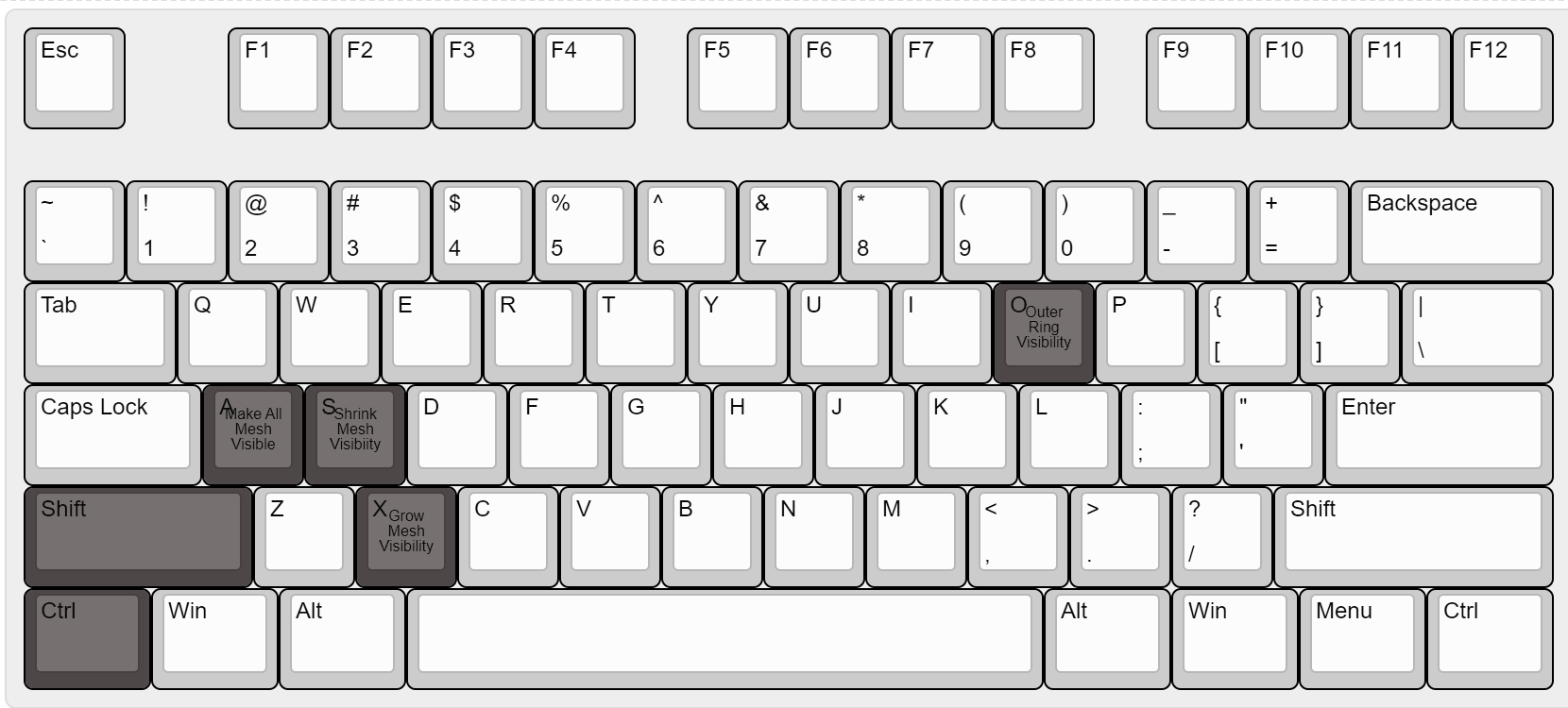

Zbrush Ctrl+Shift Hotkeys

Zbrush Shift Hotkeys

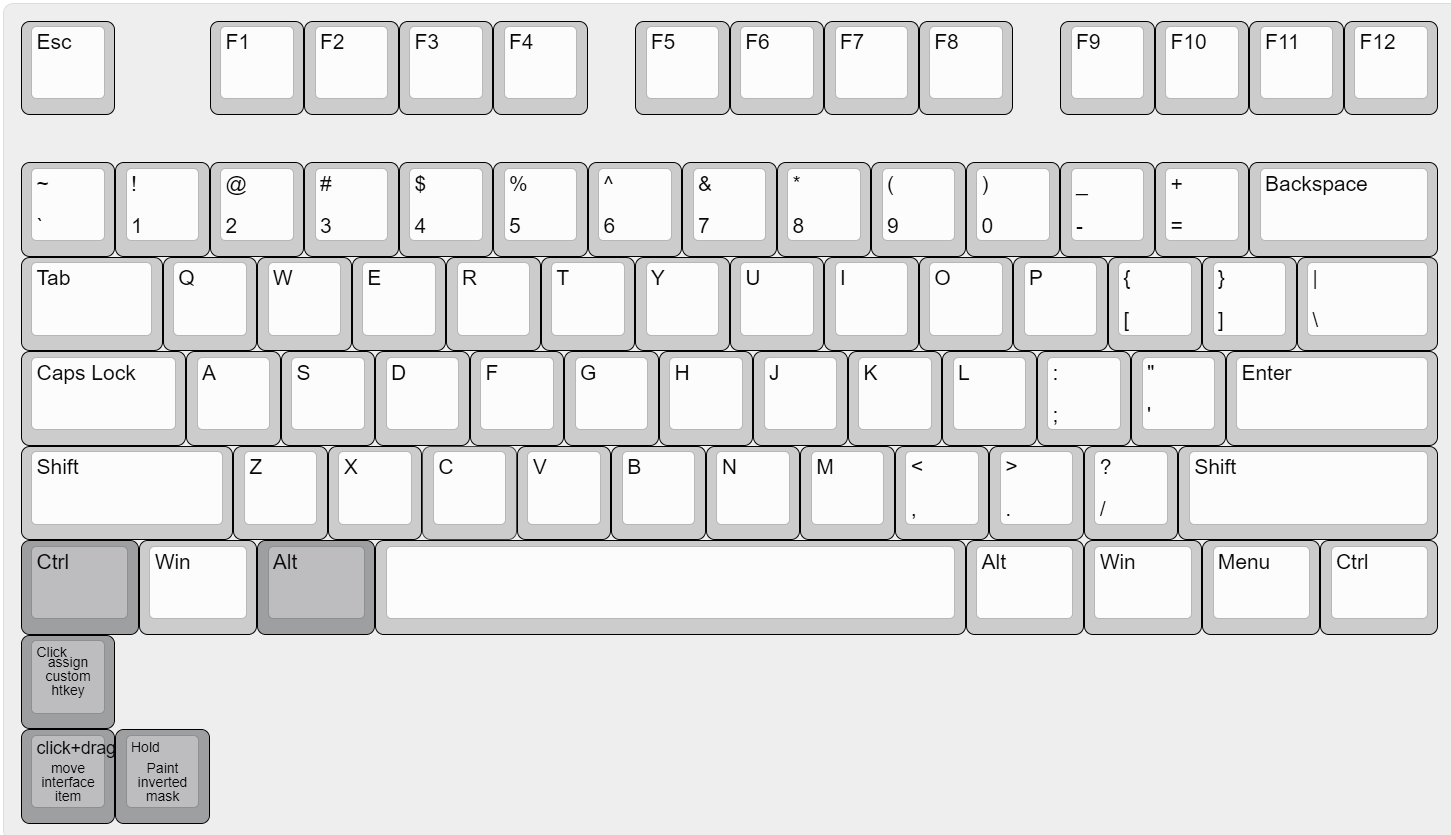

Zbrush Ctrl Hotkeys

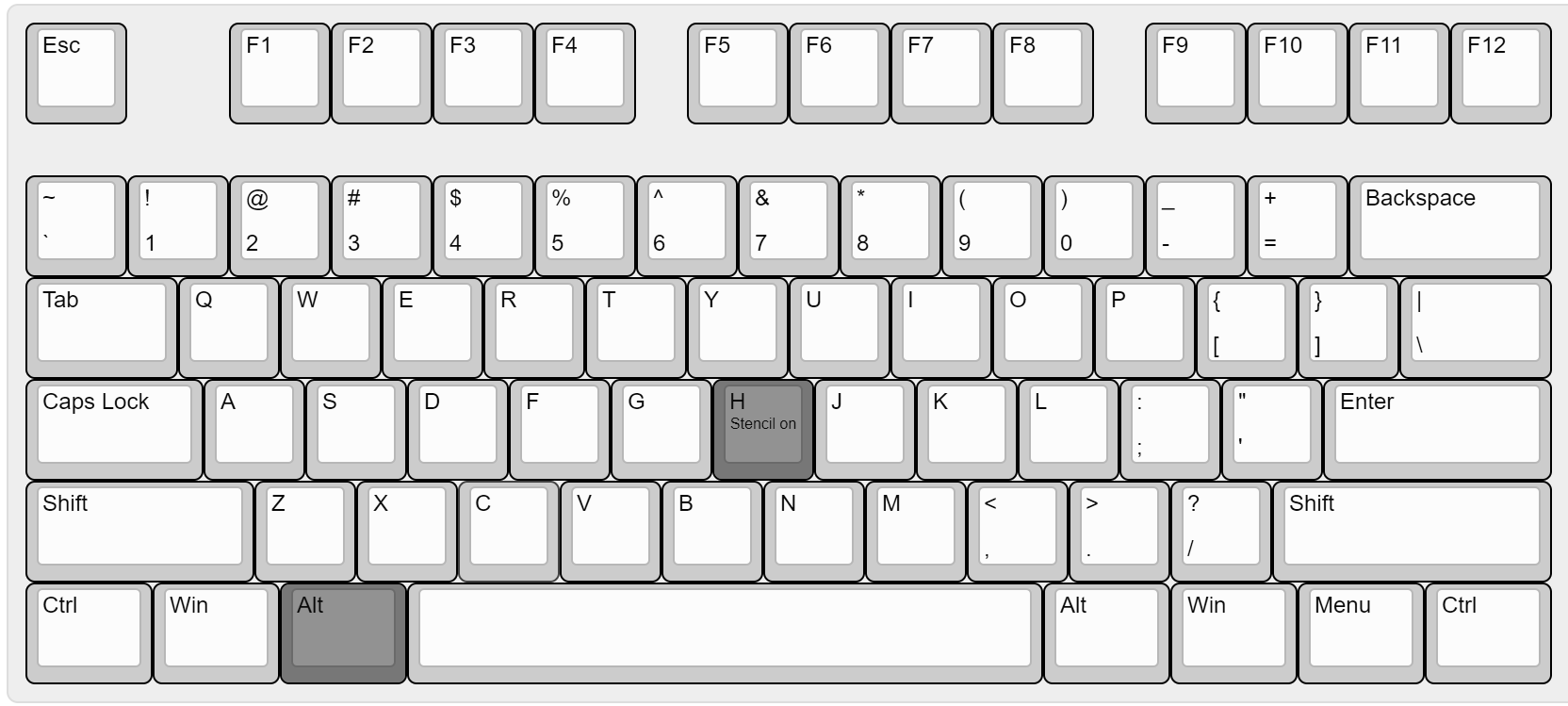

Zbrush Alt Hotkeys

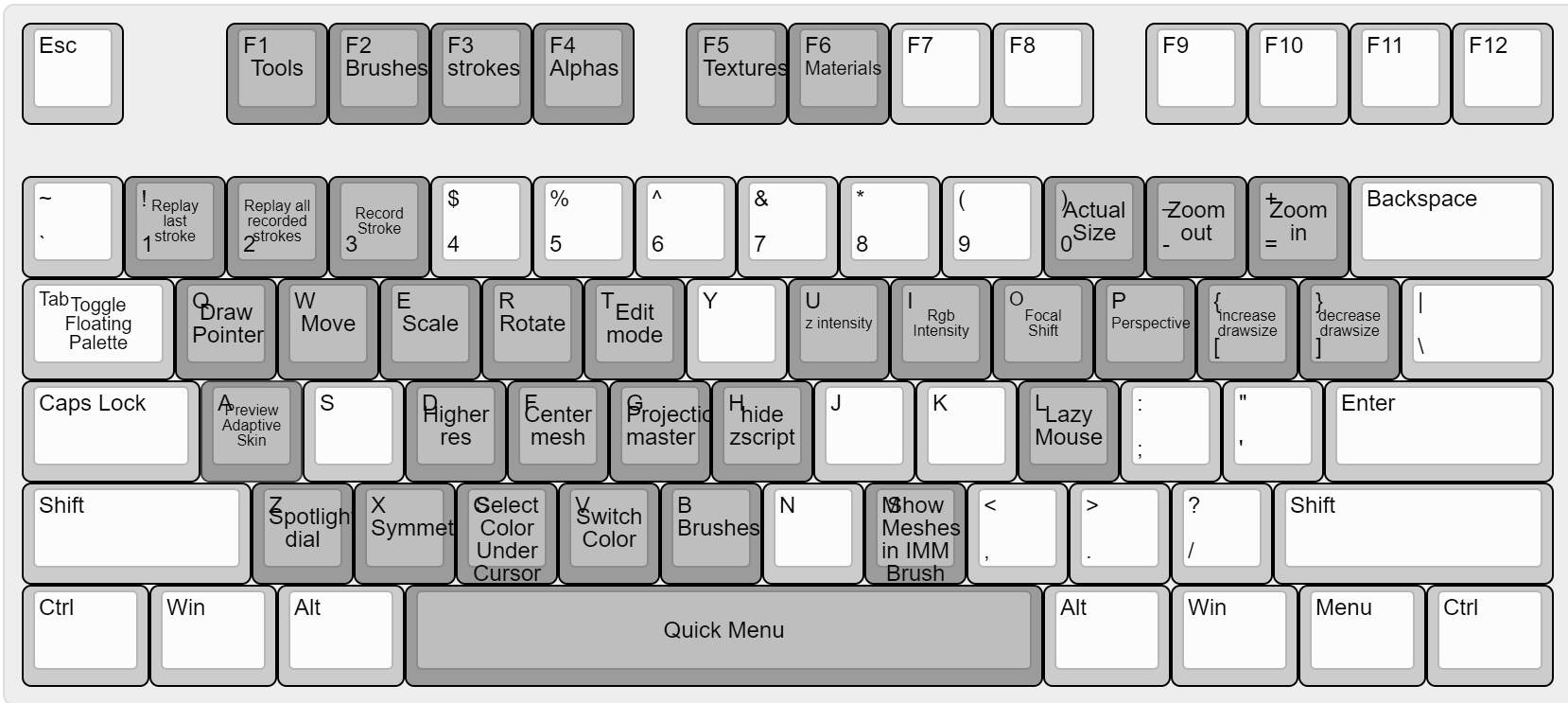

Zbrush no-modifiers Hotkeys
