how make a very sharpened edge when use REMESH

[untalmau]

hi …
just toknow

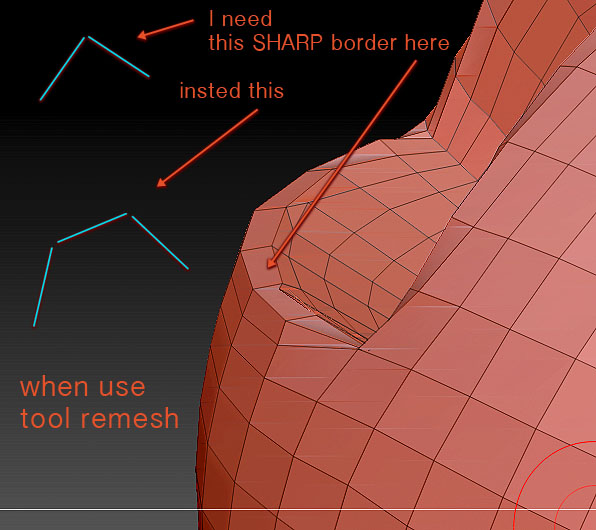

how make a very sharpened edge when use the tool REMESH to reduce the mesh

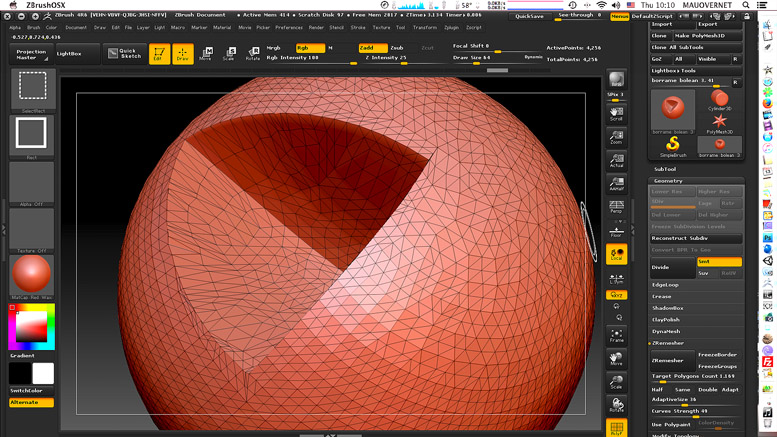

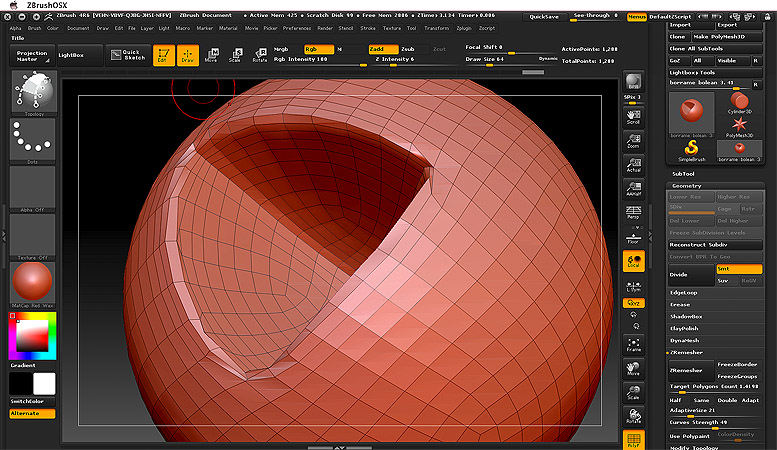

here i leave (in secuence) tree pictures
to explain better what i need.
and any help will be apreciate so mush.
.

Attachments

[Cryrid]

There are 3 planes that create that indent; try giving each plane it’s own polygroup. You can probably do this automatically by using Tool: Polygroups: Group By Normals.

This should give you 4 polygroups; 3 for the indent and 1 for the rest of the sphere. Once you have this, try zremeshing it with the “Freeze Groups” ZRemesher option toggled on to see if it makes a difference in preserving the angles.

[untalmau]

Thanks so much…
now i need to export all polygroups as a single object.
how can i weld all polygroups when export … after remesh

weld each point to the closer point maybe ?

agains thanks su much

[Cryrid]

Once it has been remeshed to your liking, you can either use Tool: Polygroups: Auto Groups to create a single polygroup, or disable Tool: Export: Grp to export the mesh as a single object rather than with separated polygroups.

[untalmau]

thanks … i try this …
and works, single objects but, some points are separated, andi have toweld onle by one and take tomuch time.

is there a way to export and wels points at sme time ?
welded to the nearest point eachone ?

thanks again , so much.

[untalmau]

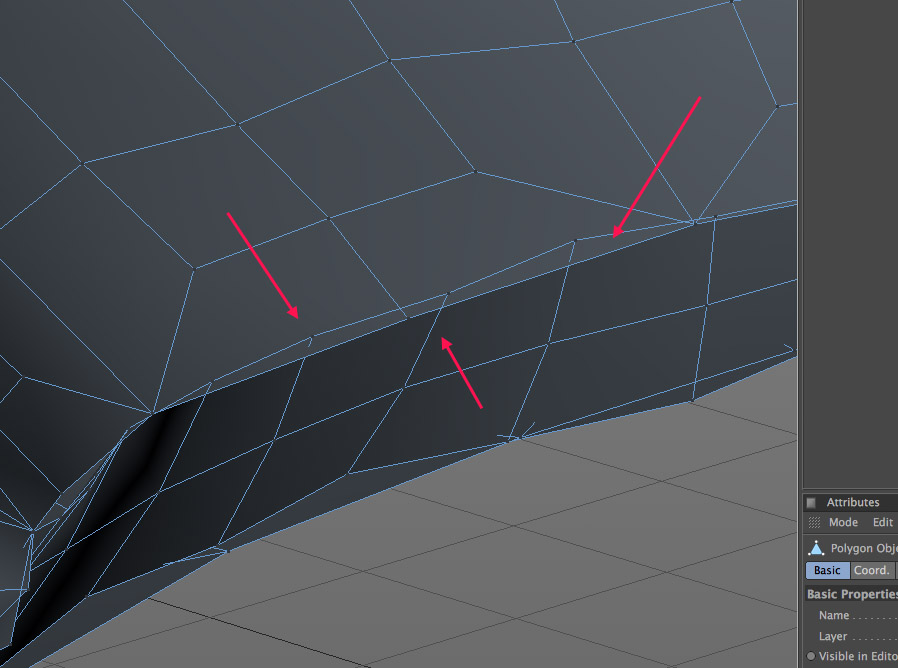

I have solved to export a single object, but always the points are not welded,

how can I do, to export a single object and the points exported welded to the nearest point, and NOT generate holes whwn export
as shown in the following picture !

any help will be apreciate so much
