ZBrushCentral

Goz update for Modo 701

PARENT-ZSCRIPTS CHILD-ZBrush ZScript Utilities Forum
#1

Is there any sign of a Goz update for Modo 701. I’m on a Mac and I’ve tried just about everything “Updating Paths”, “Forced Install”, “Manual Install” but Modo crashes each time I try to send a simple mesh from ZBrush to Modo.

Sending models from Modo to ZBrush is working, despite throwing up an error during the process.

#2

Modo isn’t crashing now that I’ve removed recoil and Goz is working slightly better, but not really in a usable or reliable state.

#3

It’s not working for me either.

#4

Are you both on Mac’s or is it on PC Also?

Also are you having problems with UV’s being removed when sending the mesh to Zbrush?
thanks.

#5

Im on a Mac, my initial problem was crashing and no way to send models back to zbrush. I’ll test the UVs when I get a chance and let you know.

#6

I’m on a Mac.

I’ve got Goz working to some extent.

I’m able to send models from Modo to ZBrush, but it doesn’t seem to be working on the trip back.

#7

[SUB]well, I meet similar issue as yours.[/SUB]

#8

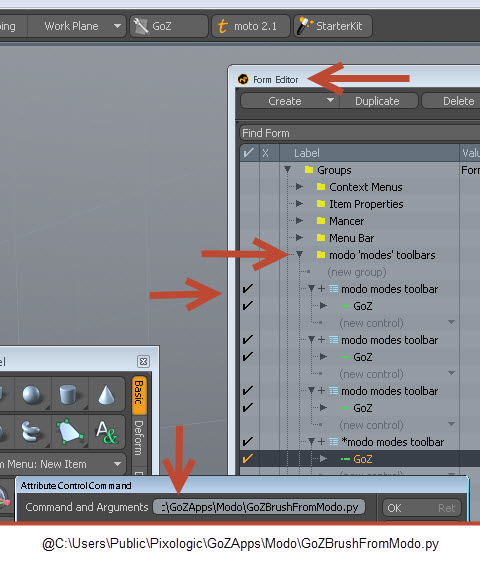

hi - just installed 701 windows 7 64 bit and found again the GoZ button was not showing up in none off the modo views. ( was the same issue with 501 and 601) i think this time the reason is that they have chnage the main menu mode.

but - easy to fix.

  1. do a forced reinstall from zbrush to modo 701
  2. open modo and from system menu - open “form editor”
  3. in form editor - open “groups”
  4. open the folder modo’modes’toolbars - inside there are 4 x blue marked forms - all the same - “modo modes toolbars”
  5. unfold the first form - or just select it
  6. in the form editor window - top leftthere is a “create” menue - click it a choose “new command”
  7. a small window pops up - “command & arguments” - copy and paste this including the @ and confirm by ok: @C:\Users\Public\Pixologic\GoZApps\Modo\GoZBrushFromModo.py
  8. now there is a new entry inside the first modo modes toolbar - called “run script” but greyed out, click the text and enter GoZ
  9. right click the newly created GoZ command and chose dublicate - make 3 dublicates
  10. drag one duplicate GoZ command into each of the 3 empty forms underneath.
  11. you should now have a button called GoZ in the following modo views: all except set up and animate

here it works fine -

cheers mads

Attachments

goz form editot modo 701.jpg

#9

you could also check this thread : http://forums.luxology.com/topic.aspx?f=32&t=75787

that might also work for mac users.

cheers and happy gozetting

#10

excellent, that worked, thank you dyepeche!
