Fixing small hole in mesh

ZBrush Usage Questions
#1

Hi Guys,

There is a small hole in my mesh that I’d like to fill.

I have tried using the Fill Hole function but because this mesh is a single plane (not a closed mesh) this method does not work.

I have also tried using the Curve Bridge brush but that doesn’t work either…it seems the curve bridge brush needs to connect two holes together in order to form a bridge, rather than plugging a single hole.

Could you please suggest how I may go about fixing this?

Attachments

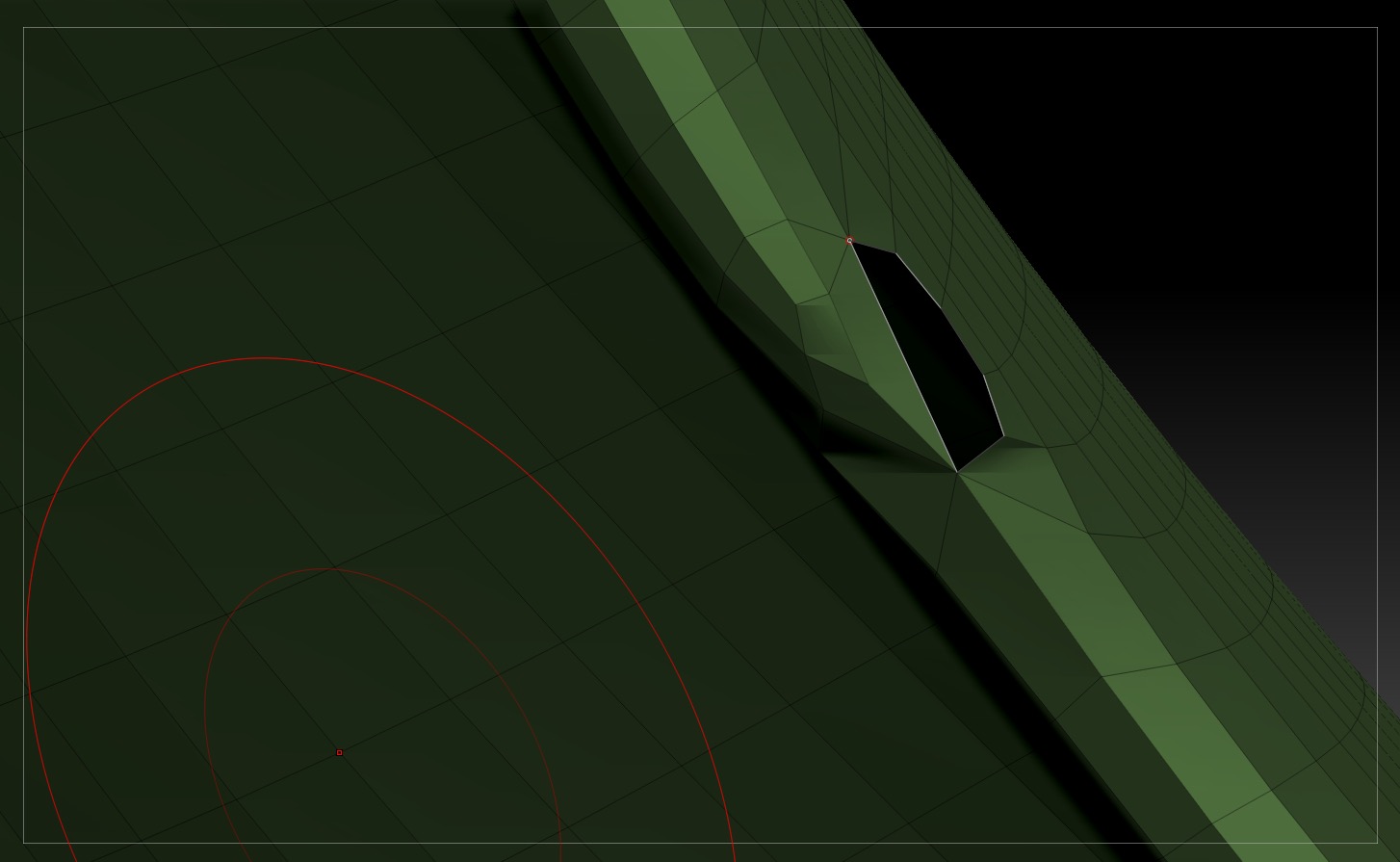

Screen Shot 2015-08-19 at 2.57.47 PM.jpg
Screen Shot 2015-08-19 at 2.57.47 PM.jpg1454×895 93.2 KB

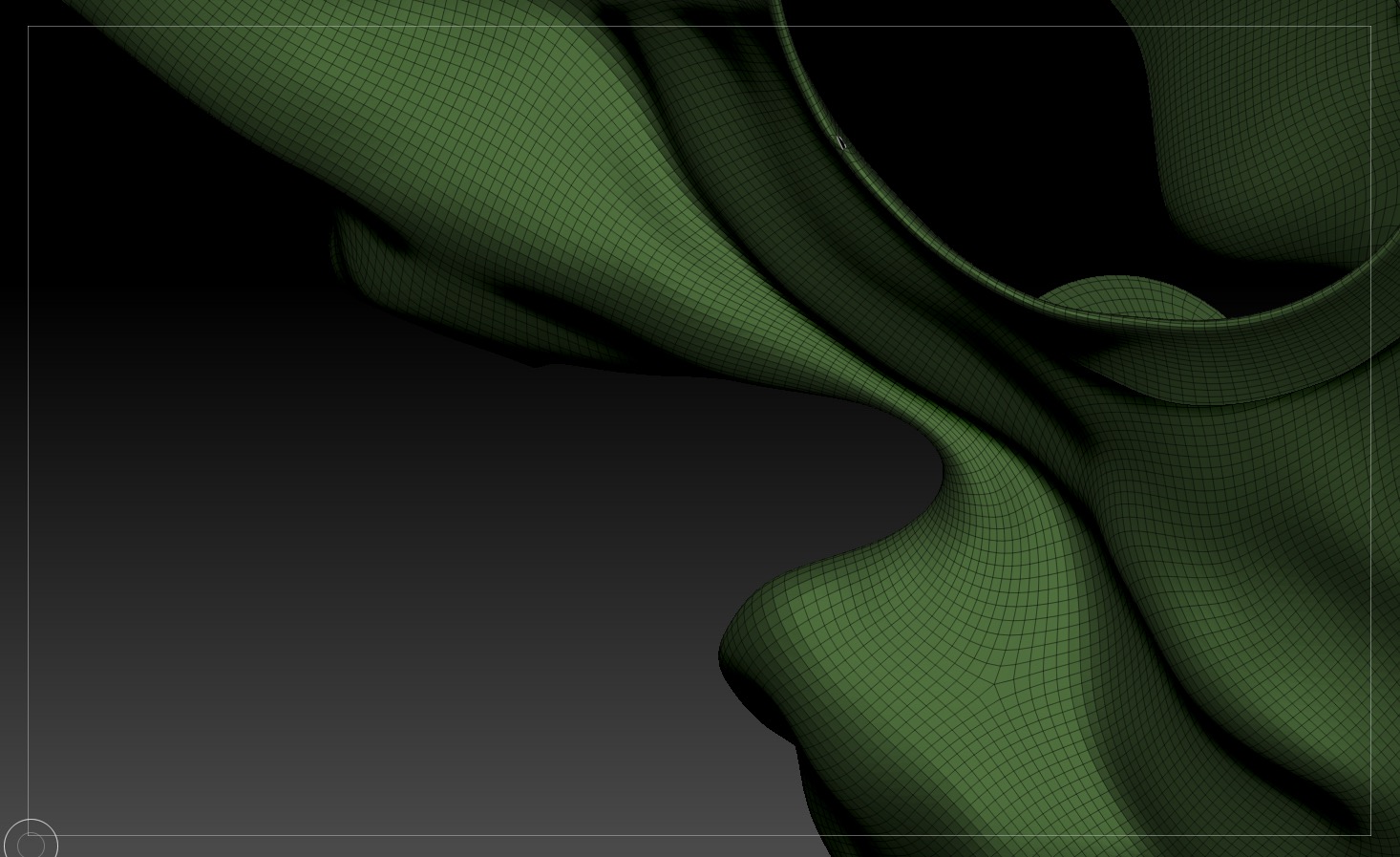

Screen Shot 2015-08-19 at 2.58.08 PM.jpg
Screen Shot 2015-08-19 at 2.58.08 PM.jpg1466×897 222 KB

#2

Use the new Zmodeler brush. Hover over a edge of the hole and press the right button to select the option “close”. If you are hovering over an edge you should have selected the edge hole.
Now click over the edge and it will close the hole.

#3

wow Zmodeler is amazing. first time using this. great new tool.

thanks for the suggestion Altea.

close hole didn’t work, but i did two Bridges and that seems to do the trick
