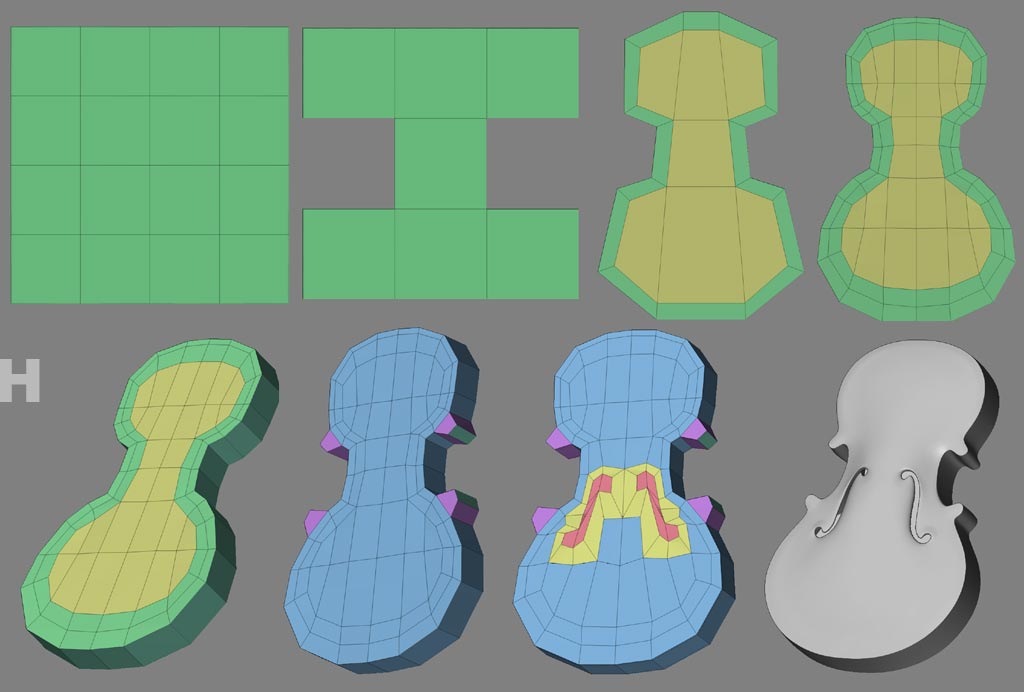

I needed to create a fiddle for one of my characters, here’s the first part of many, simply box modeled in zbrush with the help of morph targets, inflate, create difference and edge crease. I will create the pipeing around the edge with zspheres.
Steve 8)
You really are clever little sausage.
Nice Strad.
Cool way to do that, man. I really love the Box modeling tecnique.
So, thanks for showing that.
Cheers
Roland
Good Z-modeling!
Wow that is awsome.
Found a good picture for you. I dont think you need this kind of detail but after the perfling is inlayed there is a grove scraped in near the edge.
That is looking really good, looking forward to updates.

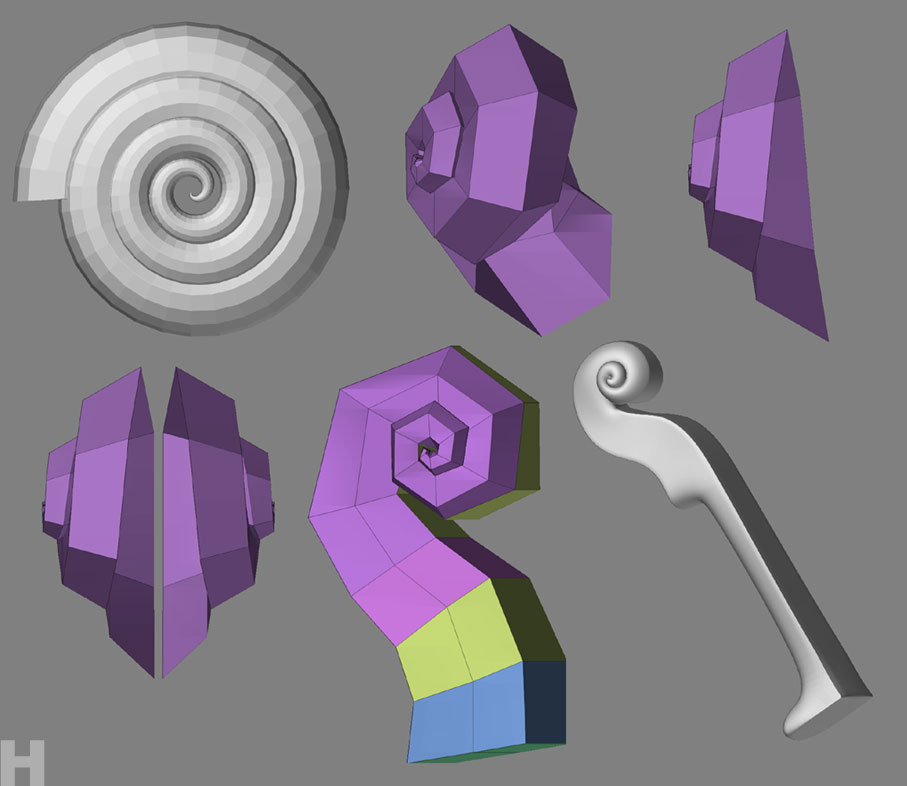

Thanks for the comments folks, and thanks for the pic divideandrender. Here’s the first part of the neck, starting from a spiral 3d tool with some setting adjustments. Next deleted some polys, offset, mirrored it and finaly morph target, create difference. From that stage it was simple box modeling.
Steve 8)
Parts are looking great Handlebar. Cant wait to see how it all fits. And am pretty shure the result will look spot on.
Handlebar - I’m not familiar with using ZB to create reflective symmetry.
Would you perhaps attach a simple zscript (any basic form or example would do) so I can see what it is your doing here?
Out of interest -I wonder if you could have got a scroll effect by also polymeshing a drawn scroll mesh created by the deco brush?
e.g http://www.zbrushcentral.com/zbc/showthread.php?t=26397
These posts are a real inspiration to revisit ZBrush for modelling solutions.

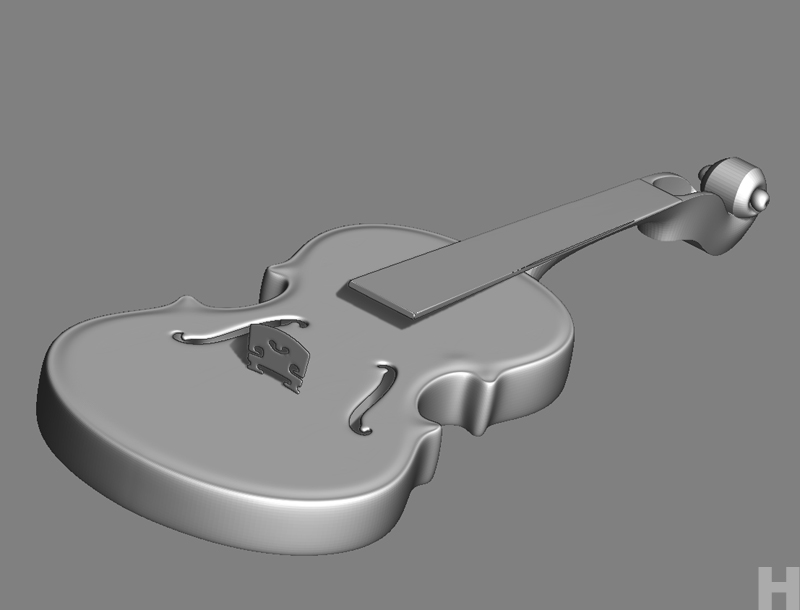

Sure thing boozy, will have to be tomorrow though as i’m just off out down the pub. Here’s a little update, i haven’t sculpted the form yet, still adding details.
Steve 8)
Here ya go Boozy.
Your a gentleman Sir. enjoy your supping and many thanks for the explanation
select tool>make polymesh>draw new polymeshed tool onto the canvas> Edit Mode>Geometry =reconstruct subdivide if less polys are required >Geometry=hide unrequired polys>MorphTarget-store morph target>Geometry=delete hidden polys>Deformation = offset slightly in x axis >snapshot component(shift+s)> deformation =mirror x axis>MorphTarget=create difference mesh>clear canvas>now draw the new difference mesh tool onto the canvas et voila.
Very nice Looking forward to the finished product.
Thanks for posting the script and thank you Boozy for making it easy to understand.
this looks great, although I have to point out that you’re insane since this would take far less time in a traditional modeling app
Hehe. Embrace the madness!!! :lol:
Umm… Faaark!
That is some serious mastery you’ve got going there Steven… You’re bursting the bubble of limitations here man… congrats on yet another mindnumbing workflow made up of a series of clever forethunk steps
You’re inspiring me even more to dig into this insane lil app
Thanks for the kind words folks, this crazy old fool certainly appreciates them
.

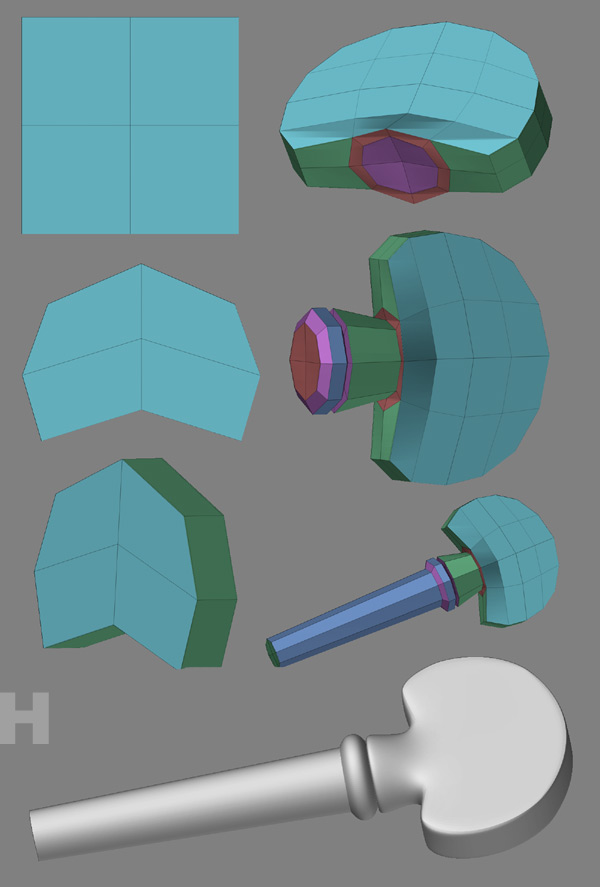

Here’s the machine head modeled in about 10 mins which included saveing out the files for the walkthrough. I certainly wouldn’t compare zbrush with conventional modeling apps, but i wouldn’t say it’s slower, just a different workflow, it all depends on your requirements. Deformers are your friend in zbrush.
Steve 8)
Steve, I never thought this could be done inside Zbrush but you are making clear that I’m wrong. The curved shapes are working really well.
I once started building a lute in 3D, but never got through because of some of the more complex shapes. Seeing this I’m thinking I should try Zbrush to help me out. Many thanks, and keep going!
BTW Steve good sir, my ZBstudents flipped when I created a topologised head in Zbrush using a combo of your workflow and a few others that posted in the topo thread… Your method of looping around the central poly of the eye is great mate Thanks again
Thanks Plakkie, Daddymack.

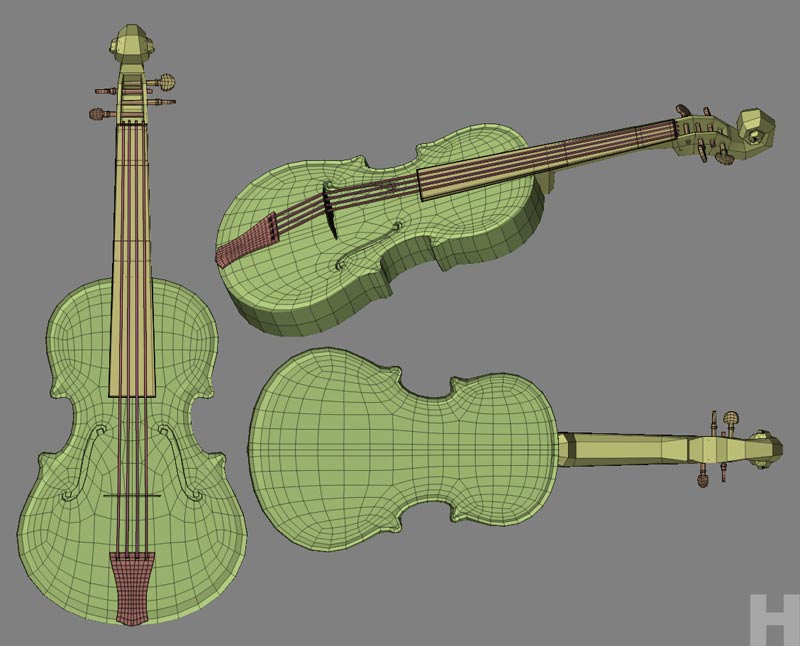

Here’s the fiddle with most of the elements in place, 100% zbrush modeled, need to do a little work here and there but i want to get on with the main character of the scene.
Steve 8)
