Edge/ loop Bridge?

[bloecher]

i really found no easy way to bridge a loop of edges, any ideas?
in the end i quickly bridged in max, but i’d like to stay in zb for this tiny task

• zmodeller bridge works only on singe edges
• moving the edges closer and welding is tricky and inaccurate when the loop is not straight
• curve bridge brush doesn’t really work in this case, i could’n select those edges on the both sides

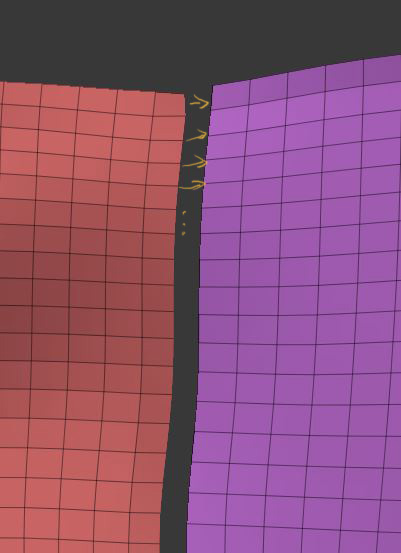

Attachments

[zber2]

How about stitching the points?

With ZModeler brush, put cursor on a point, press Spacebar and select “Stitch” from Point Action, Target will be “Two Points” and Modifiers will be “To End Point”. Select the first point then the point you want to stitch it to. The process goes pretty quick.

I haven’t used ZModeler extensively so I’m not quite sure if there is a better way or not

[bloecher]

ah ok, works, but the same process like bridging edges, still have to do every point by hand. in the ends its ok, i was just hoping there is a two click solution in case you do it a lot. I hope they add polyloop bridge later

[Modeler3D]

In recent versions, am I still unable to bridge multiple edges (edgeloop)?

[mifuyne]

I know it’s a couple months late, but have you tried selecting Two Holes instead of Edges when using bridge?

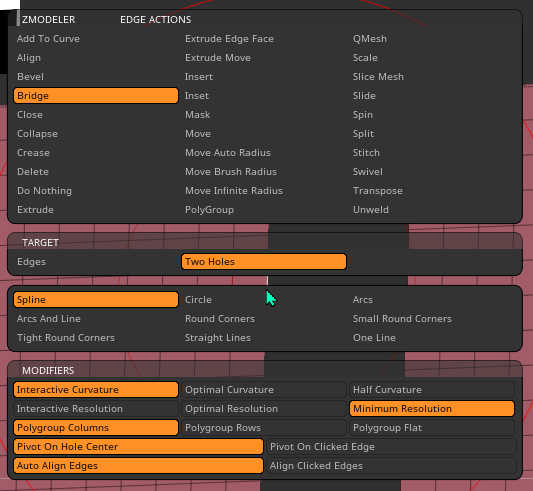

These were the settings I used:

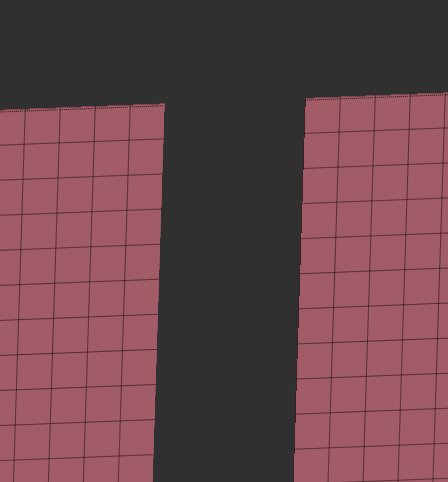

I tested it on a plane with strips of polygon removed:

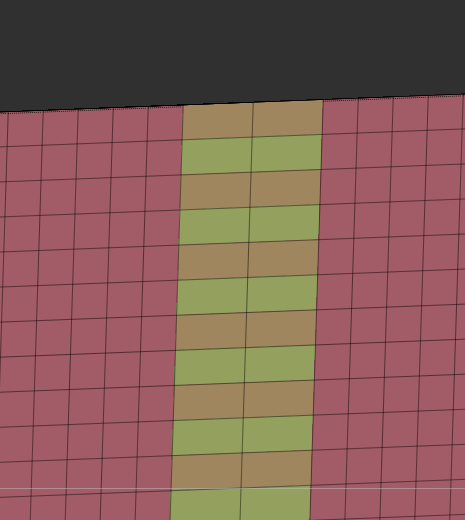

The settings I posted created this result:

It also works on closed edge loops, as far as I could tell.

I hope that helps you, or anyone else that was looking for it!
