Decimation Master Question

[system]

Hello!

I am working on a project for my thesis, which is about 3d printing wearable costume pieces for the stage. I did a very rough draft of a project to get price quotes on 3d printing services, but I am encountering an issue with the decimation master, which it seems I should use before I move onto the 3d printer exporter.

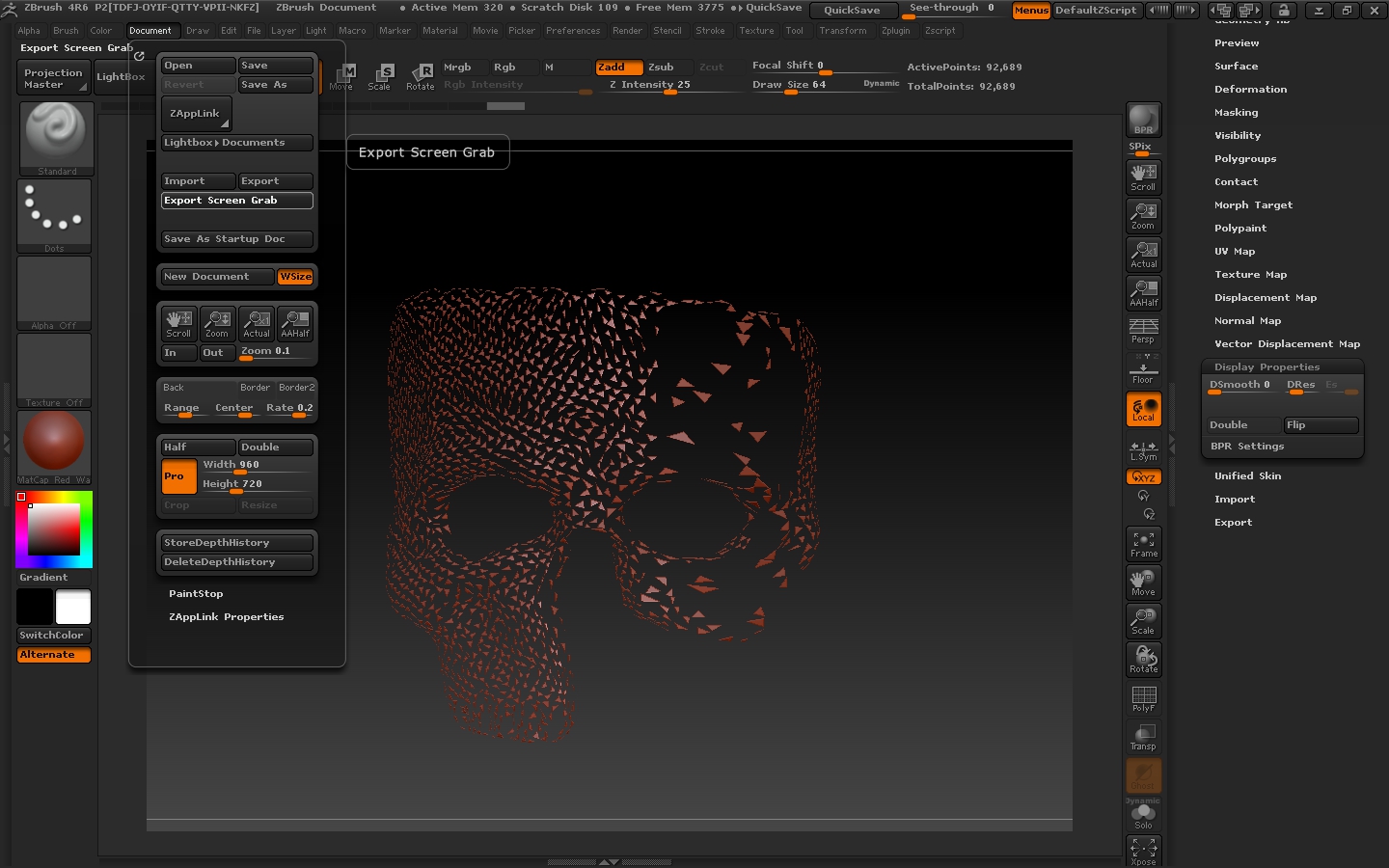

Basically, I preprocess the mask subtool (That I made from extracting a masked off area of a 3d scan of my face, which appears to me at least to be watertight.) and then when I tell it to decimate the mask, it removes almost all of the polygons completely. I’ve attached pictures to show the issue I’m having. I’ve done some searching around and I cannot find a problem like mine and have NO idea what to do about it. Thank you in advance for your time and attention!

Attachments

[Thor]

First, you need to update your Zbrush. It’s free to upgrade to 4R7.

Is that dynamesh? If not, try dynameshing a copy.

Check the mesh integrity and fix mesh, weld points, close holes before decimating.
You also might want to make a copy and use Zremesher and project detail back.

… but definitely update your Zbrush.

[system]

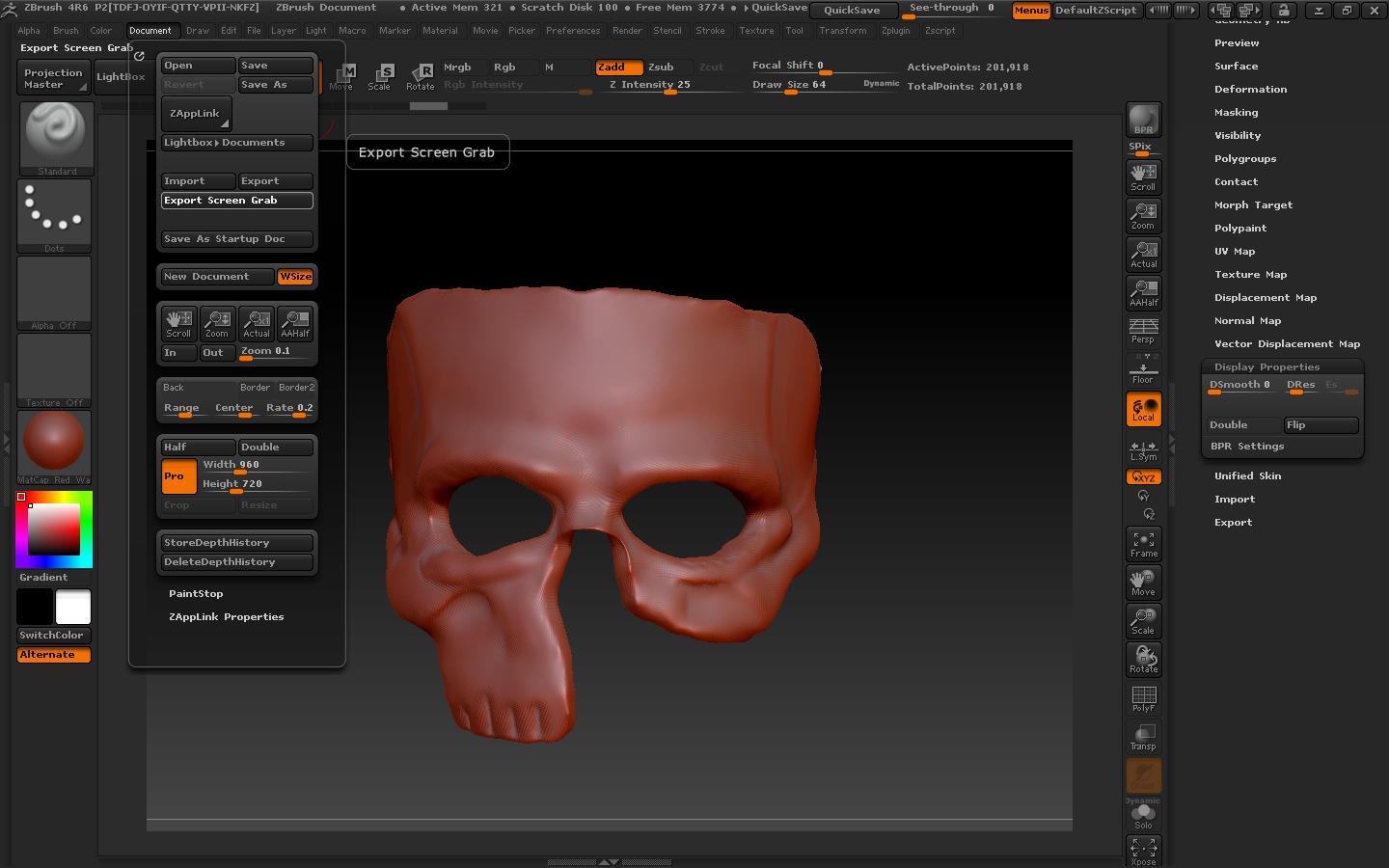

Thank you for your help! I had dynameshed it previously when working on it, taking it into maya and rotating it so that it had a more predictable xyz axis and bringing it back seemed to do something strange to it, dynameshing it again solved the problem. Thanks so much!

[Thor]

I had dynameshed it previously when working on it, taking it into maya and rotating it so that it had a more predictable xyz axis

You exported a dynamesh and brought it into Maya?

For future reference, you probly don’t want to do that. Dynameshed geo is pretty much a Zbrush only thing.

You have all the tools you need for setting the orientation within Zbrush (in the Deformation palette).

Good luck with your project.
