Zbrush for manufacturing

Evan_H · October 26, 2020, 11:59pm

Hi,
I just wanted to share my university honours project which shows how Zbrush can be used for design and manufacturing.
The surface quality exported from Zbrush to CNC machinest was very good quality, with little to no smoothing required.
Thanks Evan

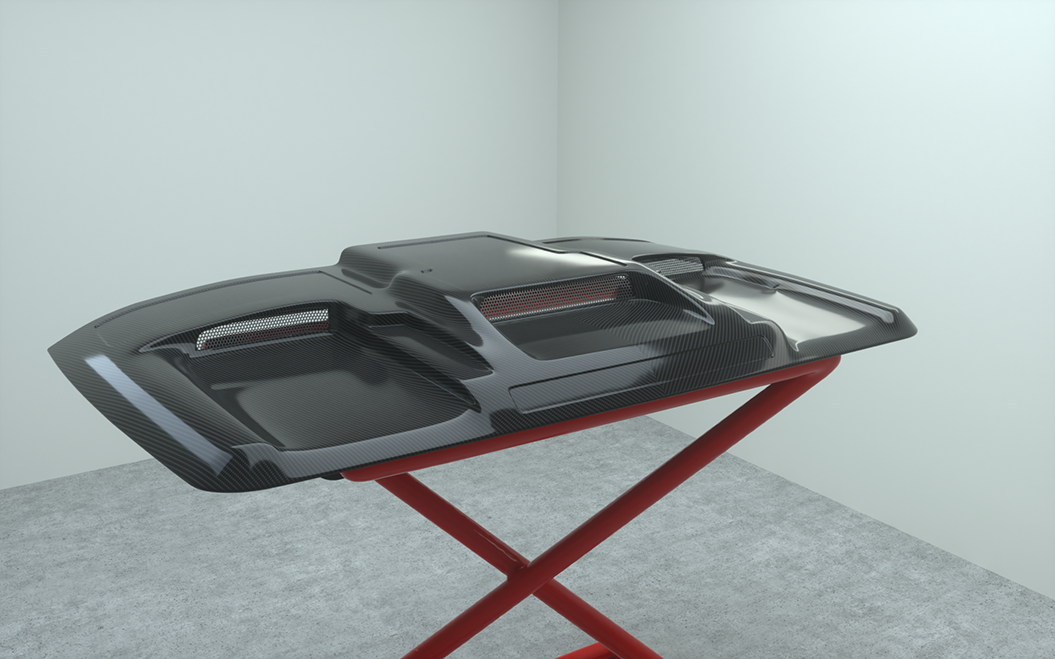

Render - 3D Model
Bonnet_Start_148-(2)

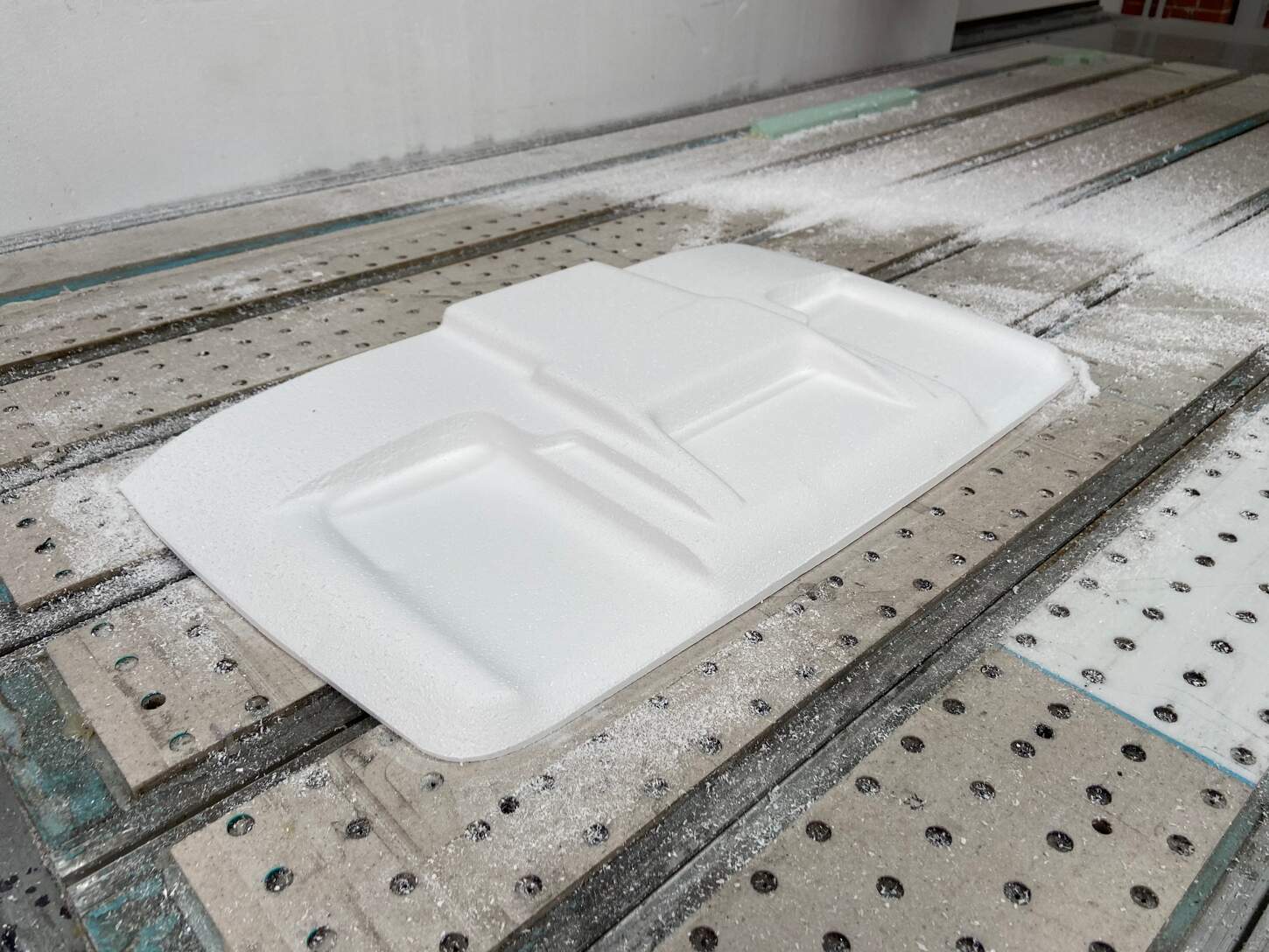

CNC Foam

Doug_Jones · October 27, 2020, 12:34am

Is it a ZBrush render?

Pixo_Daisuke · October 27, 2020, 5:46pm

so, the 1st image - 3D model.
2nd image - foam which was milled with CNC

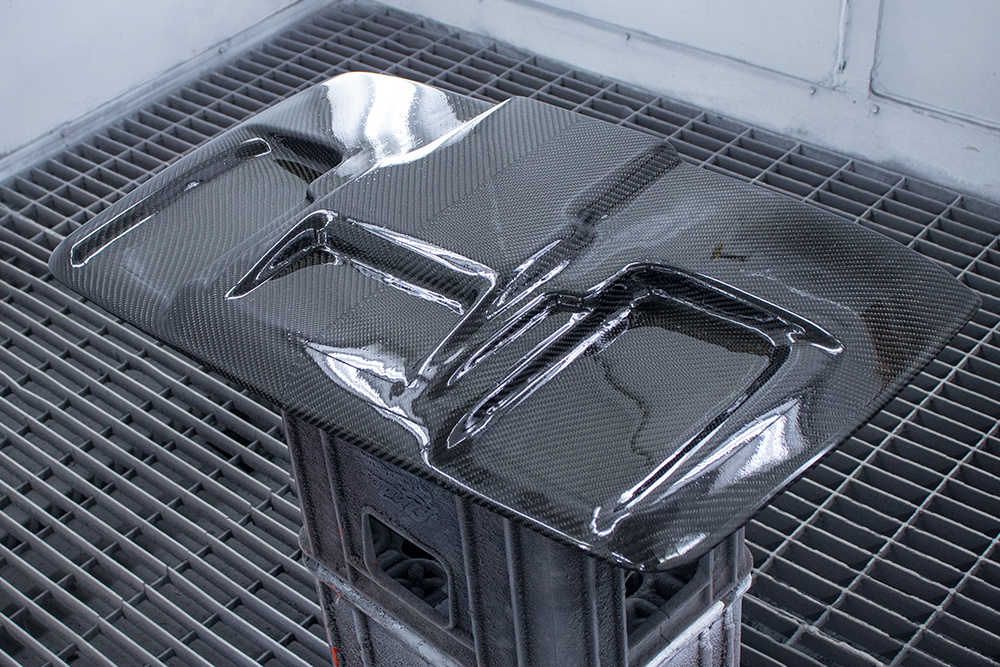

3rd image - a plate which was vacuum formed from the 2nd foam?

Doug_Jones · October 27, 2020, 5:49pm

So, once again, Is the first image a ZBrush Render?
