Problem with subdivion level.

Can someone please help me with a problem. After i converted a model from zsphere to “Make Polymesh 3D” and I try to increased the subdivision, but even if i clicked the Divide a few times the object still has the same resolution it doesn’t smooth it out. I’m using brush 4r8 p2.

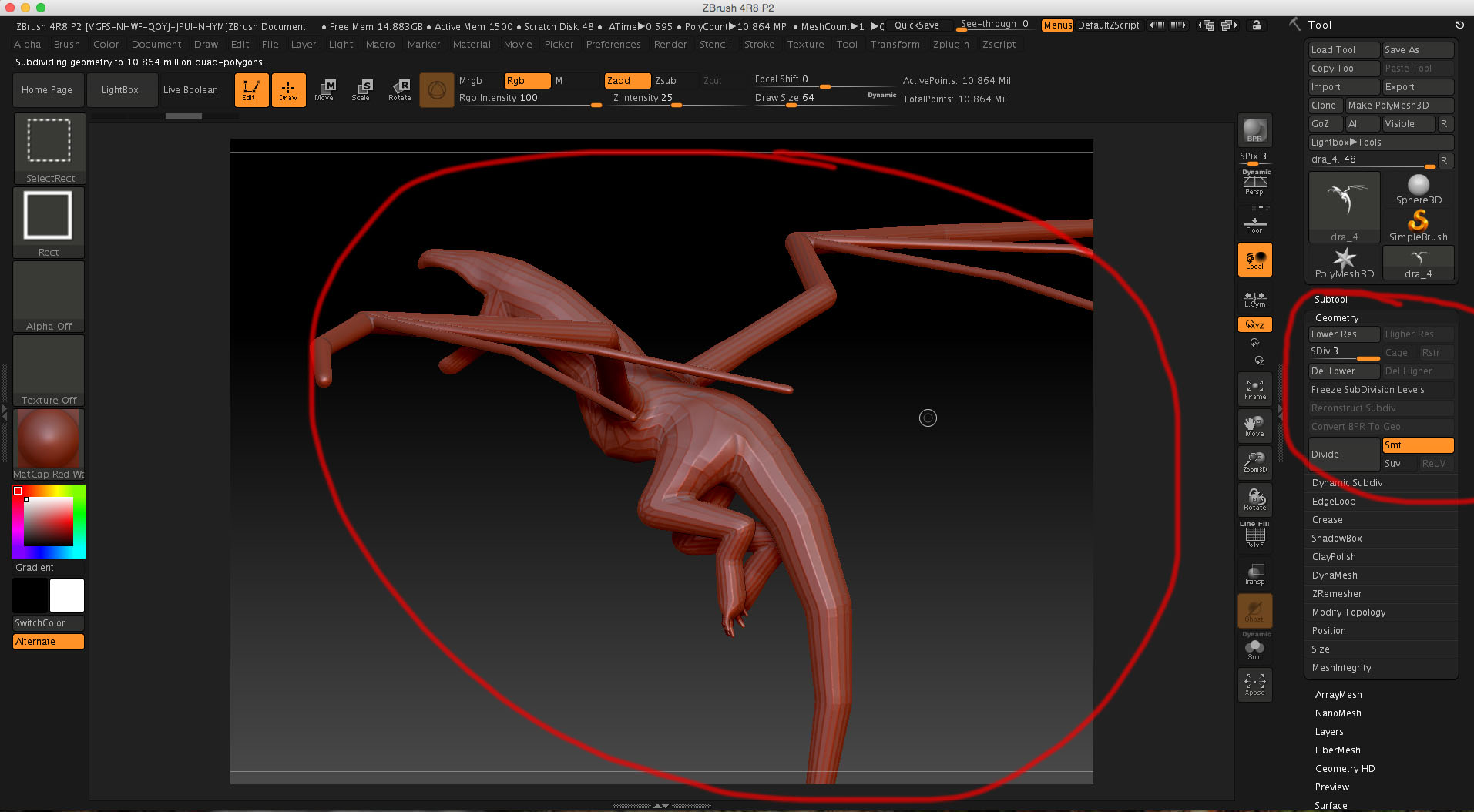

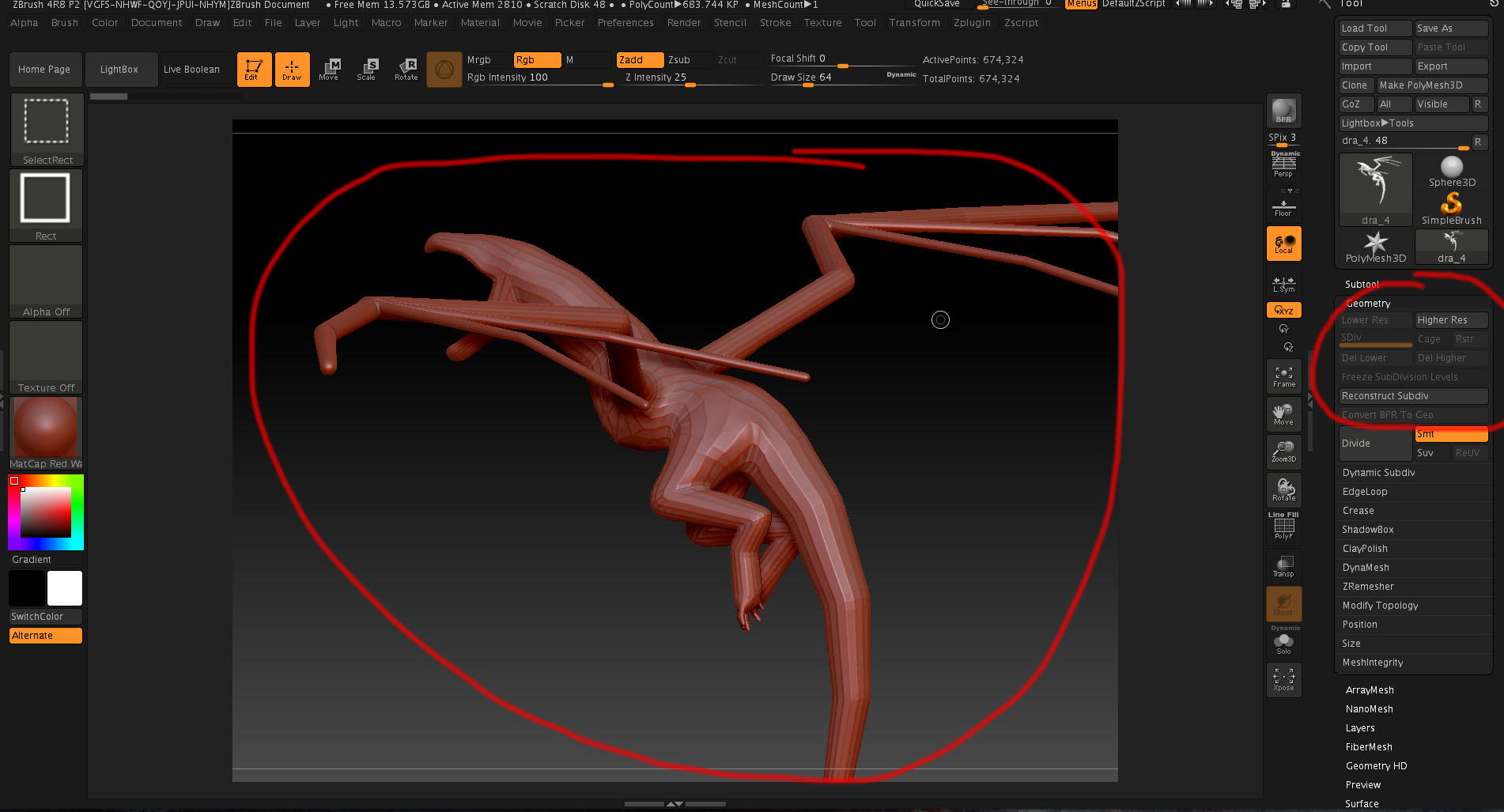

Screen Shot 2017-09-04 at 7.56.51 AM copy.jpgScreen Shot 2017-09-04 at 7.56.31 AM copy.jpg

Attachments

Screen Shot 2017-09-04 at 7.56.51 AM copy.jpg

Screen Shot 2017-09-04 at 7.56.31 AM copy.jpg

This is odd and I’m not sure what’s happening. I suggest you try this:

  1. At the lowest subdivision level, export your model as an OBJ.
  2. Restart ZBrush and select a different project such as the DemoDog.
  3. Select the PolyMesh3D Star tool in the Tool palette and import the OBJ you saved at (1).

Then try dividing.

Thanks, I tried it but still doesn’t work.

That’s because the Adaptive Skin you made is Dynameshed. With your ZSphere tool selected, turn “DynaMesh Resolution” slider in Adaptive Skin subpalette down to 0 before you click “Make Adaptive Skin” or “Make Polymesh 3D” button.

It would be nice if that slider default setting was 0 to begin with. (ahem Pixologic)

Thank you very much, zber2. Sorry for another question. How can I set “Dynamesh Resolution” to default as 0?

No problem Siegs. I’m afraid you can’t set it to default to 0. As soon as you select a ZSphere, the resolution goes up again. Save config won’t work. A startup macro won’t work either. I have already tried. Like I said, as soon as you select a ZSphere, the resolution goes up. I don’t understand why they did it that way. It’s just plain stupid.

ohh I see, Thank you very much for your time zber2.

The DynaMesh setting will save with both a Project file (ZPR) and ZTool (ZTL), so if you save one of those and then load it whenever you want to work with ZSpheres it may save you some grief. :wink:

Or, you can use a Macro. Here is a Macro that will draw a ZSphere on the canvas, turn DynaMesh Resolution to 0 and enable Edit mode. Just put the text file into “ZBrush 4R8/ZStartup/Macros/Misc” folder. You will have a new button in “Macros > Misc” palette called “Load ZSphere” that you can move to a convenient place.

Load ZSphere.TXT (1.06 KB)Load ZSphere.TXT (1.06 KB)
