Merging two sides of a coin

ZBrush Usage Questions
#1

Hello
I’m working on a coin design, and had to work on the two sides separately in Cinema4d as I was using Height maps to create geometry.
I imported both sides of the coin in Zbrush, and want to connect them but give them some thickness.
The coins are not perfect circles, they have some irregularities.

I tried using a cylinder than I sandwiched between the two coins, but it didn’t feel like the right approach. I thought about doing some kind of extrusion of one side to the other, but my knowledge of Zmodeler has left me stuck.

Any suggestions on a good strategy for this?

Thanks!

#2

Hi @Ouranos

Try the CurveBridge brush to join both halves together. See the following video.

#3

Thanks I was just looking at that!

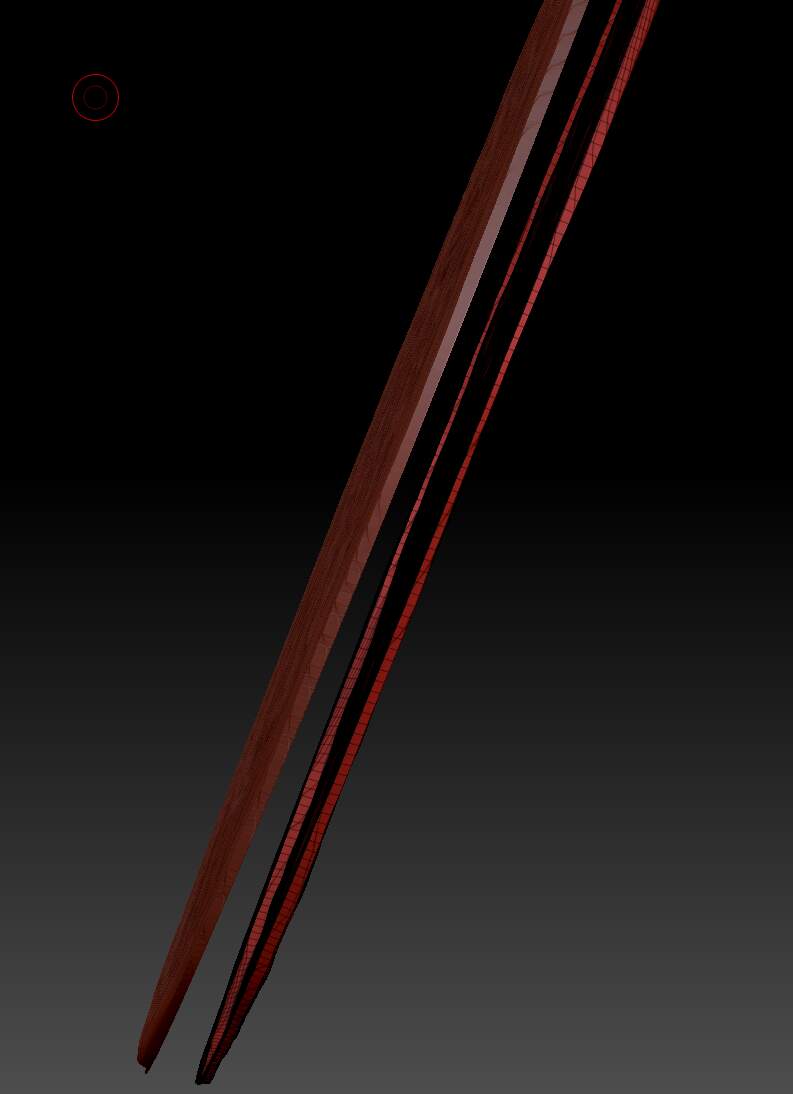

But can’t seem to make it work with this type of scenario
What would be a good way to select the whole loop around each subtool? Was just trying with Zmodeler but no luck

#4

You have to merge both halves together first so they are one subtool before you can use the CurveBridge brush.

#5

Amazing! That worked. Thanks a lot!

#6

You’re welcome! No problem! :+1:

#7

You can also use close mesh and qmesh on polygroup all :smiley:

Hope it help!
Nicolas
