Howto: Bend (and twist) a long rectangular box for 400 degrees

ZBrush Usage Questions
#1

I’ve been struggling with this for a while now and I can’t find a way to make some sort of helix that spans about 400 degrees. I would get the effect by making a long, rectangular box and arc-bending it for 400 degrees. But in that case the ends would overlap, which in a helix is not the case.

I’ve tried using the helix primitive with four sides, but I can’t get the sides turned 45 degrees.

I’m on zbrush 2018

Here’s an example that’s almost what I’m after, but as you can see it is still twisted, it isn’t like a large rectangular box that has been arc-bended.

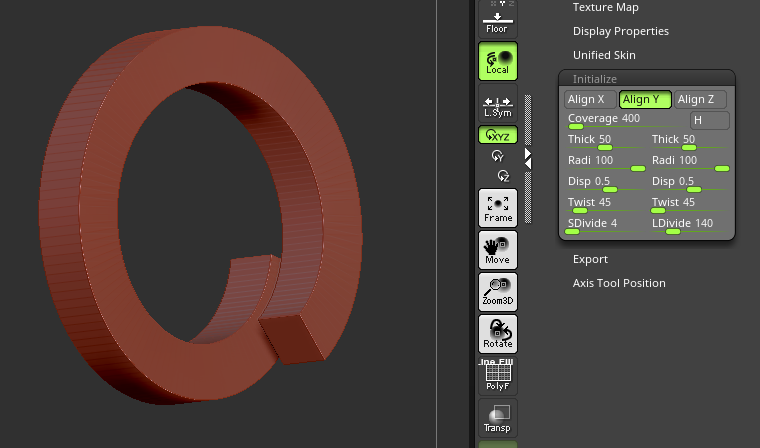

ring test.jpg

#2

If starting with a helix I run into the following issue: Is there a way to enter the ‘twist’ values by hand instead of dragging the points in the small window? That’s just not precise enough.

#3

Initialise (settings for stuff like this with input boxes for all the basics) To set up parameters…

#4

Thx, but the thing is that there are no input boxes for ‘twist’, only a window where you have to drag/draw a curve to set the values. And that simply isn’t precise enough.

#5
Try using the Spiral3D primative instead of the Helix3D primative.


The Coverage slider and Twist slider is in degrees. Click on the slider to get a red box where you can enter numerical values.

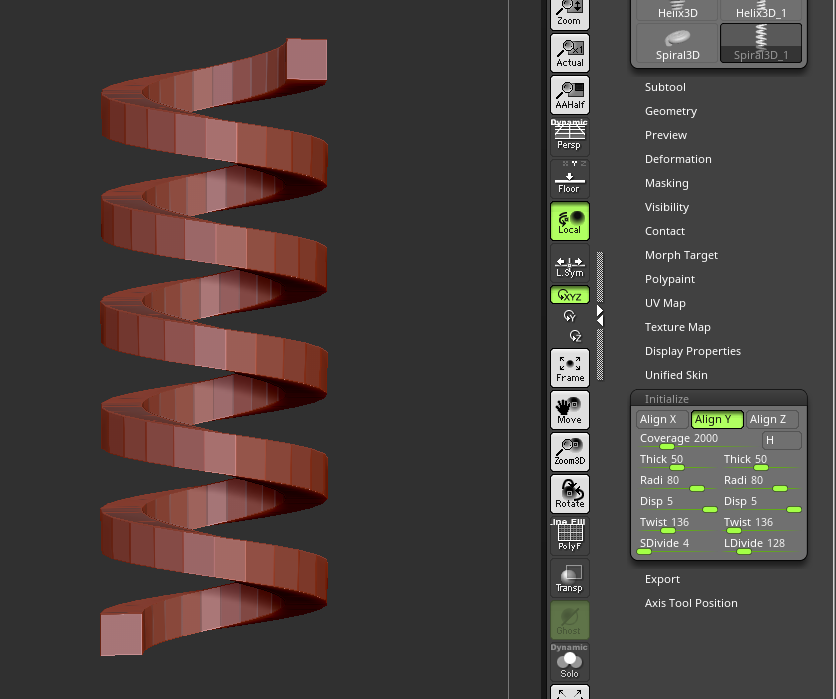

Screenshot - 7_2_2018 , 3_00_52 PM.png

#6

Thanks! That’s almost what I’m after, but this is still a square that is extruded and bent, not a rectangular shape.
