Hey everyone!

I’m doing some work on a book cover, and I’m trying to make make a shape that has proven to be harder than it looks.

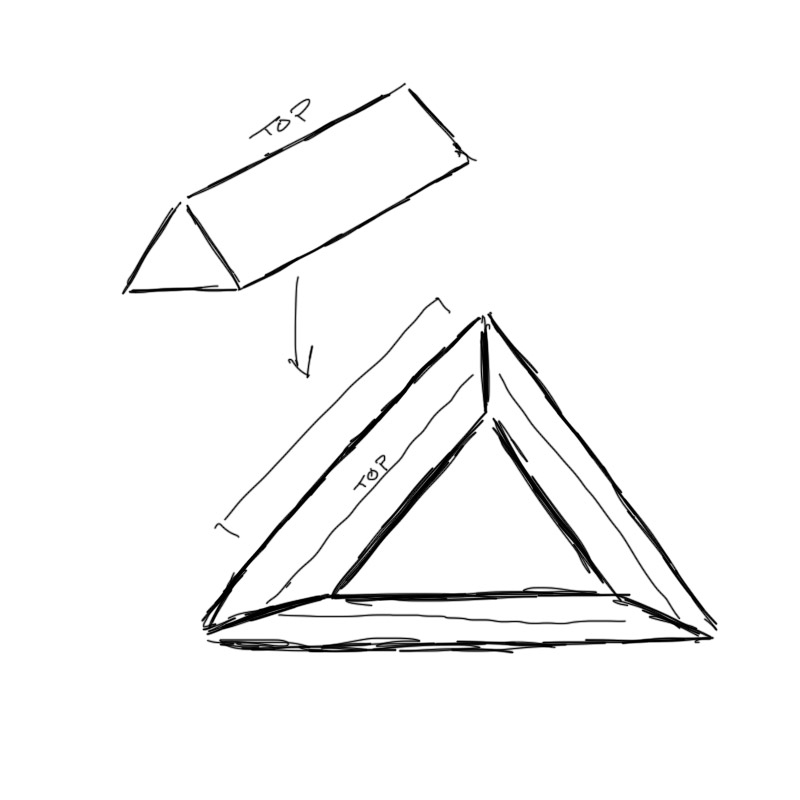

I need to make a triangle out of triangle-shaped bars… This is hard to explain, so I’ve attached a quick little sketch of what I’m trying to achieve.

I’ve tried making a triangle shaped alpha to mask onto shadowbox, however i can seem to polish the edges to make it look like its triangular bars… I tried making triangular bars, and use transpose to move them into position, but still, that looked like crap too…

Any help?

Unfortunately, I dont have maya or really any other 3d program other than zbrush and blender.
I love zbrush, but havent had luck with this type of hard surface work.

Attachments


#2

…there has to be an easy way to create this shape…
Anyone?

#3

Off the top of my head:

Start with a poly cylinder. turn on Radial Symmetry at 3 around Y. Use one of the polish, flattening or even Trim brushes . Duplicate subtool and scale it to the size of the inner whole. Use the boolean feature to cut it out of the original subtool.

Hope that helps…

#4

I would do it this way.

Cylinder3d - Initialize - HDevide 3 - make polymesh and cut the edges with the slice curve

#5

I suggest you start with a Ring3D, Initializing it so that SRadius is 60, Coverage is 360, Scale 1, Twist 0, SDivide3, LDivide3 and ITwist 30. Deformation/Rotate it by -30 in the Z axis and Size it by -100 in the same axis.

This produces a perfect, triangular-cross-sectioned triangle.

Cheers,

Rory

#6

Perfect :+1:small_orange_diamond:+1:small_orange_diamond:+1:

#7

Rory,

OH MY GOD YOU HAVE SAVED MY FROM PULLING THE HAIR OUT OF MY HEAD, ONE STRAND AT A TIME!
Thank you so much for replying to my post!
Simple, easy, straight forward, I very much appreciate the step-by-step.

May I ask, how would I go about doing the same thing with other shapes…
Say… A hexagon, made of hexagon-shaped bars?
Is it just a matter of the SDivide and LDivide?

Thanks again,
Corey

#8

Yup! :slight_smile: Glad I could help.

R
