How to constrain Stylus Movement to Monitor 1?

Hello,

My question is regarding how I can constrain my Wacom Tablet Stylus to only move within ZBrush.

I have two monitors on. I have gone into my Windows Tablet settings and set up the constraints for the tablet to only allow me to move within monitor 1.

It works fine … except in ZBrush. ZBrush is only utilizing the left half of my tablet and I can easily move my cursor outside ZBrush to the right onto my second monitor.

When I click once inside of ZBrush, it moves over both monitors. If I click once on the second monitor, then it snaps my cursor into ZBrush on the first monitor. Back and forth.

Unfortunately, this causes the movements in ZBrush to be very sensitive as I am only using half of my small size tablet.

Thank you.

Hi @ScottHoneycutt

I am using an Intuos 3 Wacom tablet and I have it set where the stylus only works in Monitor 1 and I use the mouse to do what I want on Monitor 2. The stylus utilizes the whole area of the tablet and covers the entire ZBrush interface. See image for Wacom settings.

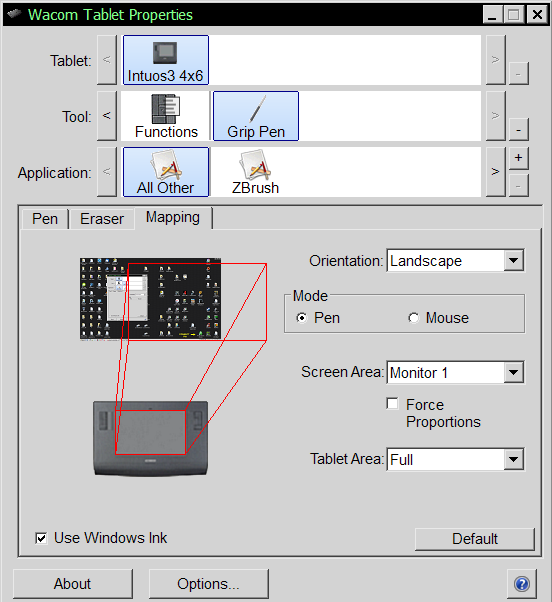

2022-01-18 20_14_47-Wacom Tablet Properties

Thanks for showing me!

I just didn’t realize the settings were different per software. I only had it set to Monitor 1 for All Other.

1 Like
