How align pivot to the bottom of an object?

ZBrush Usage Questions
#1

Hello,
I wonder if it’s somehow possible to align a pivot exactly to the bottom of an object?

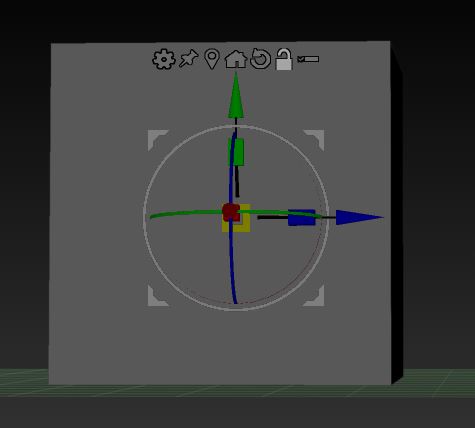

In the example I created a simple 3Dcube and would like the pivot to be at 000, in order to transform the cube from there…
(I know of course how to move the pivot manually, but this is not exact)

Thanks

seit pivot on 000

#2

ALT-tap botton face to set the Gizmo on the bottom face.

Mask all verts except those on the bottom face and tap the Go To Unmasked Mesh Center icon (balloon/upside down tear drop/?) to go to the center of the bottom face.

If there is a vertex at the center then with Zmodeller brush active ALT-tap on the central vert to place the Gizmo on the bottom face in the center.

Probably other ways too. It’s ZBrush :slight_smile:

2 Likes
#3

Thanks Toborman, I will try out, sounds promising…
