Startup Troubleshooting for ZBrush 3.5R2 Windows

ZBrush Usage Questions
#21

Okay, looking at the contents of the downloaded zip file a little further, there are “Recovered Files”, “Zdocs”, and “Zmovies” folders, which do not get created either. I wonder if these should be added too?

Okay, I think I found the problem. I did a test “unzip” using the utility I normally use to unzip files – PowerDesk Pro 7. It seems it doesn’t create those empty folders. I tried PowerZip and it does. Both utilities are set to write subfolders.

Now the Zscripts folder shows up as empty in the archive, but it does get created. Not sure why – maybe someone knows? [edit] I know, it isn’t really empty – has one text file in it.

#22

Would be helpful to know where and when it all goes kaputt

3 seconds after beginning the loading!

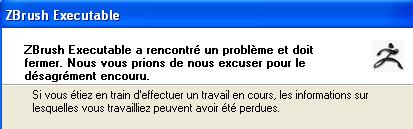

“zb.exe have seen a problem and must close” :rolleyes:
the funny of the story is that 3.1 works like a charm :cool:
3.5 3.r2 don’t want to run :eek:

see here for my specifications :wink:


#23

Pilou >> at http://www.zbrushcentral.com/zbc/showthread.php?t=74992
your problem seems to be covered (including instructions).

#24

Can’t launch ZBrush 3.5 ?
When launching ZBrush 3.5 for the first time, you may get the following warning…“This application has failed to start because the application configuration is incorrect. Reinstalling the application may fix this problem.” Alternatively, you might receive a “side-by-side configuration” error. If you get either warning then you’ll need to launch the vcredist.exe file that is included within the ZBrush3.5\Troubleshoot Help folder. This is a Microsoft installer which installs windows functions that are missing in your system.

your problem seems to be covered (including instructions).

Alas it’s not the case all is good installed! :wink:
vcredist.exe etc…
:rolleyes:

#25

For those that are looking and have the same problem I did:-

Window freezes on first start, shows in taskbar and taskmanager but goes no further.

Add the 2 directories and all is well. :smiley:

hopefully V4 will have a more polished installer.

Cheers all @ pix. … … now that my non installing grumpiness has lifted.

El-d

#26

Concerning “grumpiness”:

ZBrush refines your being;)!
You don’t believe?
Well, this is my third reincarnation at the ZBrush forums. If my memory does not trick me, one of the others (zerebrom at that time) started in 2002, followed by zerebrush.
What can I say, both of them had been very “honest”, to describe it mildly.
Now, refined by the “ongoing experience called ZBrush” (sorry Ryan!), I can stay calm even when I can see no setup.exe:D.

And for the officials and support here - get some rest or whatever else pleases you!

Thanks to all
Z

#27

Hi Frenchy Pilou,
me and SpaceMan were having the very same issues and Support asked us to send dxdiag informations to the support center so they could compare it and see what could be the problem. Here´s the post on previous troubleshooting thread with instructions from Support:
http://www.zbrushcentral.com/zbc/showpost.php?p=607880&postcount=201
However, I don´t know how about SpaceMan but I haven´t heard from them ever since, but maybe your dxdiag file could help to speed things up.

#28

THX I wil try that :slight_smile:
I have idea that SP1 can maybe freeze the c++2008 :wink:

#29

Ok, after a third restart of my system and a re-extract it worked!!!

Wierd but wonderful…

Everything online and lookin good!

:cool:

#30

Adding the Vmem and temp directories fixed my problems! Thank you muchly!!!

Dickie

#31

I have heard from support several times they are working on it.
windows xp service pack 3

Hardware Configuration:
Processors 1
Processor Type 586
MMX Support Yes

Memory / Drive Status:
Memory Load Index 47 pcnt.
Total Physical Memory 1472MB
Available Physical Memory 774MB
Total Paging Memory 4095MB
Available Paging Memory 4095MB
Total Managed Memory 8MB
Total Handles: 18
Temp Drive Free Space 1199MB

Video Driver Information:
Bits Per Pixel 32
Number of Colors 16777216
DIB Output 24BPP
Palette Size Non-Paletted
Resolution 1440 x 900

Operating System Information:
Operating System Windows NT/2000
Version 5.1
Additional Info Service Pack 3

#32

I’ve done all of the above with nothing as a result for the latest 3.5SR2. Any other ideas? Should the vmem folder be full or empty upon the original unzip?

Wusup?

Windows XP 64 SP2
4G RAM
2.4G Quad Q6600
45G Disk Space Free
Nvidia GeForce 8800 GTS 512

#33

Please include your complete system specifications
Operating System, CPU type and speed, RAM, disk space, graphics card, and anything else that might be applicable beyond those basics.
This information is very helpful to the people trying to answer your question, as well as helping us look for patterns.
Be sure to include this information even if you have already given it in another of your posts.

#34

Adding the Vmem and temp directories fixed my problems! Thank you muchly!!!

What and where must be the “temp” directory?
(I have the Vmem inside 3.5r2 folder, but not the temp)

Does the Zbrush 3.5R2 folder can be anywhere and not obliged in the Programfiles folder?

#35

Check the zstartup folder should be a tempfiles folder

#36

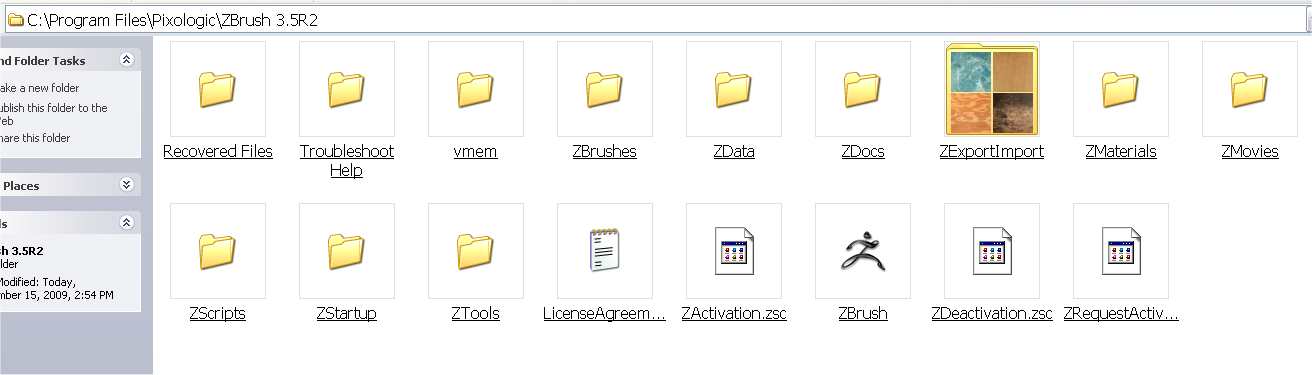

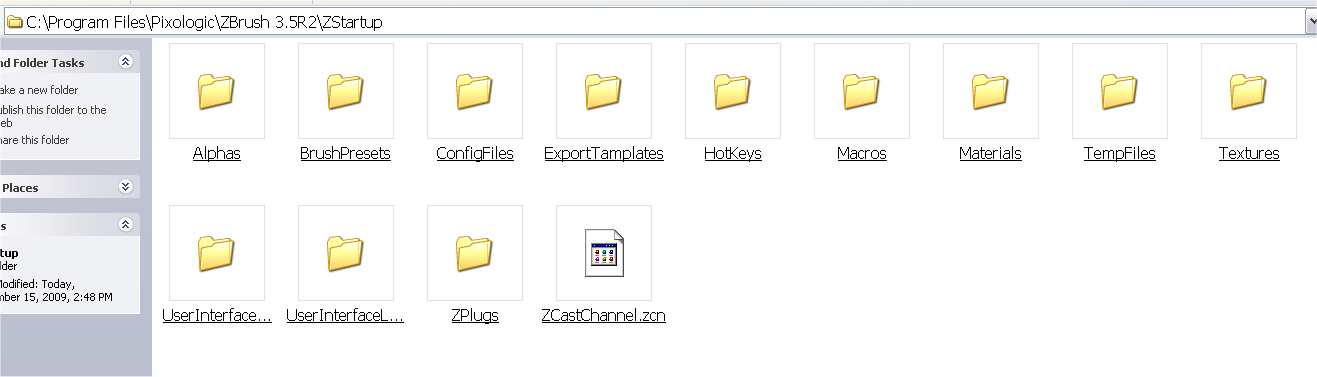

Support are these correct folders and files for the zb3.5r2 folder and zstartup folder?
[

Image3.jpg1312×375 40.1 KB
](javascript:zb_insimg(‘158395’,‘Image4.jpg’,1,0))

Attachments

Image4.jpg1317×377 33.8 KB

#37

Spaceman

That is all correct.

Paul

#38

Ok, most of us had to build this folder for ZBrush to run without error messages.

By default this folder (TempFiles) should be empty.
ZBrush writes some temporary data during launch into this folder, but after each session it should be emptied out.

ZBrush does NOT delete anything from that folder, making this not temporary files, but permanent files.
So it came quite natural that yesterday ZBrush 3.5R2 came on nagging about not being able (you know the rest).
Today I deleted the files within TempFiles:

  • images.mem
  • search.mem
  • thumbnails.mem
    and ZBrush started again without problems.

So >> what we thought would have been a solution really is just a workaround for some quirk that still is present.

Should I make a support ticket out of this?

#39

I’m seeing a zbrush.info file in the original vmem folder and the original TempFiles folder. Is this normal? Should the vmem folder stay filled with data, after shutting down.

I was able to see the interface once - when I registered the software. Since then, it never comes up.

Windows XP 64 SP2
4G RAM
2.4G Quad Q6600
45G Disk Space Free
Nvidia GeForce 8800 GTS 512

#40

Yes, these temp files have been added to all empty folders in order to make sure that these folder are created when un-zipped, regardless of which un-zipping program is used.
